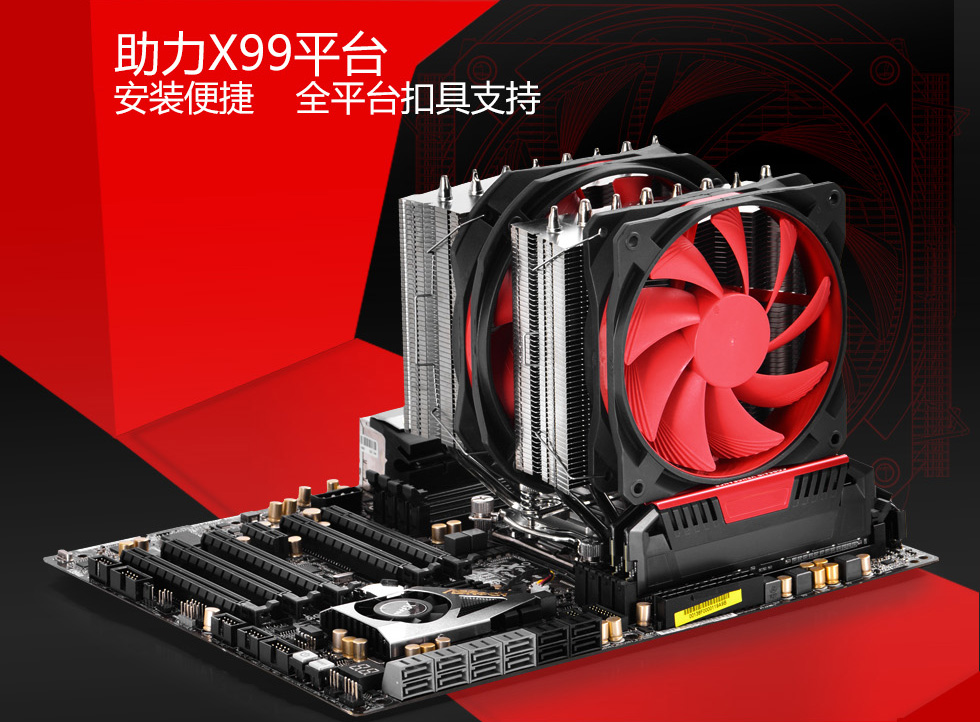

适用范围

Intel Socket 150W

LGA20XX/LGA1366/LGA115X/LGA775

High End Desktop i7
Core i7 Extreme/i7/i5/i3
Core 2 Extreme/Quad/Duo
Pentium/Pentium G
Celeron/Celeron G
AMD Socket 220W

AM4 (with "AM4 Ready" Sticker)
AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1


Ryzen
APU A12/A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Athlon II X4/X3/X2
Athlon X4

Note: AM4 Kit availability may differ by region, please check with your local retailer for more information.


产品规格

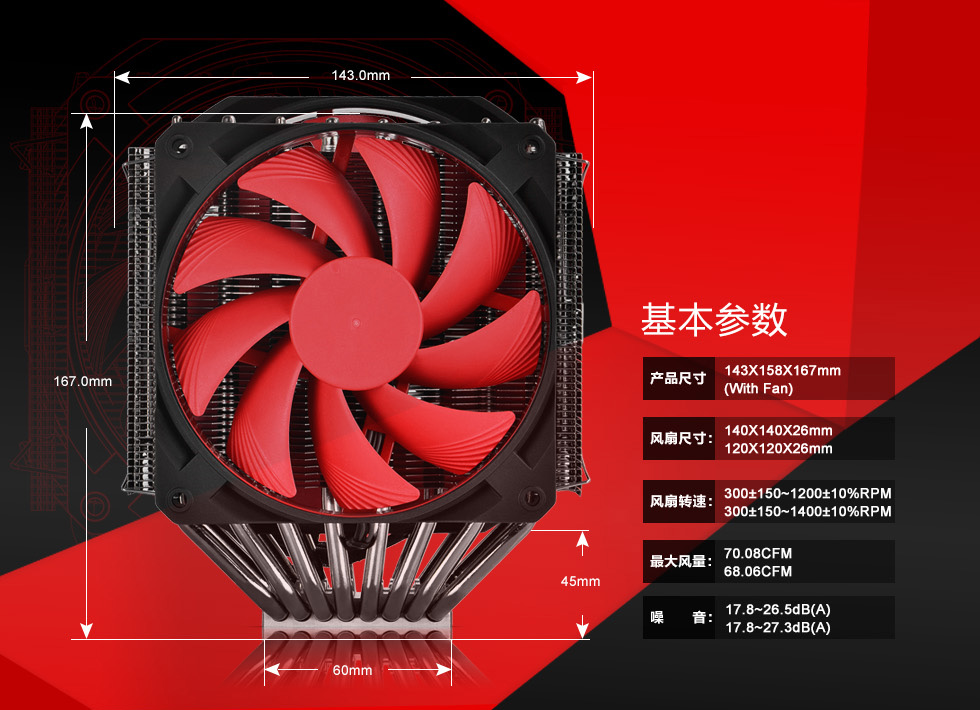

Overall Dimension 143×158×167mm
Net Weight 1479g

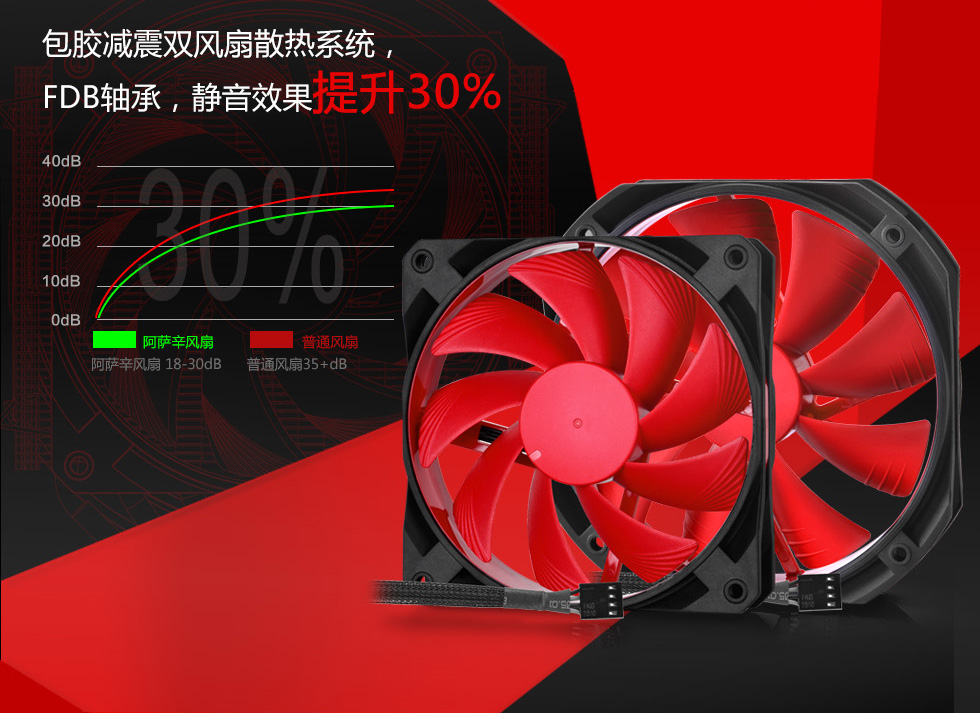

Fan Dimension 140×140×26mm 120×120×26mm
Fan Weight 173g 152g
Fan Speed 300±150~1200±10%RPM  300±150~1400±10%RPM
Rated Current 0.11±10%A(MAX) 0.09±10%A(MAX)
Power Input 1.32W 1.08W
Max. Air Flow 70.08CFM 68.06CFM
Noise 17.8~26.5dB(A) 17.8~27.3dB(A)
Rated Voltage 12VDC
Operating Voltage 10.8~13.2VDC
Starting Voltage 7VDC
Bearing Type Fluid Dynamic Bearing

产品尺寸

  •
安装说明
