Castle 240 RGB
DESCRIPTION

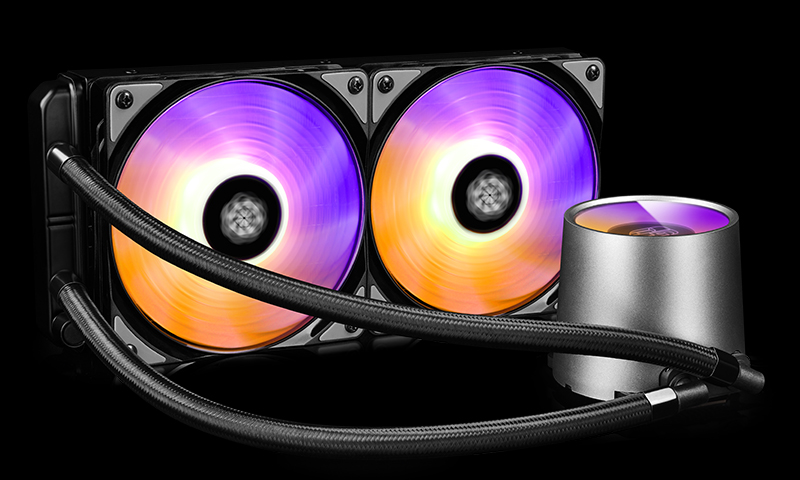

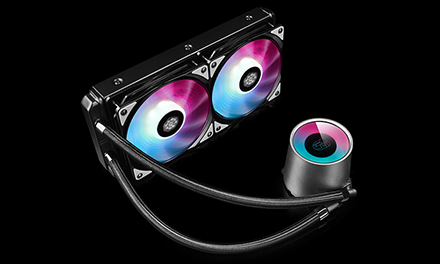

DEEPCOOL, the company that specializes in water-cooled and illuminated cases for the PC enthusiast has just introduced a brand new AIO liquid cooler- CASTLE 240RGB, suitable for Intel and AMD based systems. Its featured built-in double window panes and 16.7M true color lighting system provide a perfect display of aesthetic illumination. Its ultra-large, pure copper CPU block and its optimized E-shaped micro water channel designed to enlarge heat contact areas and effectively enhance heat circulation efficiency meet users' needs for high performance and aesthetics
The brand new water-block comes with double window panes and an immersive ambient lighting design which provides a perfect display of aesthetic illumination. In addition, the synchronized RGB lighting system of waterblock and fans are easily controlled with a wired controller (included)
The 16.7M true color RGB flowing light system with 5 in-built effects (dynamic, static, breathing, comet, and fashion collision) has 36 interchangeable lighting modes and also supports motherboards with synchronized lighting control via an addressable RGB function*
1
High efficient induction motors deliver stronger liquid flow and pressure
2
The ceramic axle bearings and axle cores guarantee an ultra-long service life
3
Closed impellers are designed to enhance liquid pressure
4
An ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size
The optimized E-shaped micro water channel design effectively enhances heat circulation efficiency and enlarges heat contact areas
It seamlessly supports the TR4/AM4 and mainstream Intel & AMD socket types
The latest 120mm RGB case fans provide a flowing lighting effect, designed for builders with addressable RGB-enabled PCs to match your system's style perfectly
Exhaustive damping technologies successfully minimize noise while maximizing airflow
Double window panes and immersive ambient lighting are designed to provide a perfect display of aesthetic illumination.
The 16.7 M true color RGB flowing light system with 5 in-built effects (dynamic, static, breathing, comet, and fashion collision) has 36 interchangeable lighting modes.
Motherboards are supported with synchronized lighting control via addressable RGB function*
Ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
An optimized E-shaped micro water channel is designed to effectively enhance heat circulation efficiency and to enlarge heat contact areas.
The ceramic axle bearings and axle cores guarantee an ultra-long service life.
It supports mainstream INTEL and AMD socket mounting, including TR4/AM4.
*WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are compatible for the device: 5V/D/G and 5V/D/NC/G, which is used for the mainstream M/B brands like ASUS, MSI, Gigabyte.

Bewerbung

Intel

LGA20XX/LGA1366/LGA115X

High End Desktop i9/i7
Core i7/i5/i3
Pentium G
Celeron G
AMD

TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1

Ryzen
APU A12/A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Athlon II X4/X3/X2
Athlon X4

Technischer Spezifikationen

Pump Größes 91×79×71mm(L×W×H)
Radiator Maße 274×120×27mm(L×W×H)
Radiator Material Aluminum
Lüfter Maße 120×120×25mm(2pcs)
Lüfter Geschwindigkeit 500±200~1800±10%RPM
Lüfter Luftstrom 69.34CFM
Lüfter Luftdruck 2.42mmH2O
Lüfter Lebenserwartung 40000 hours
Lüfter Geräuschpegel 17.8~30dB(A)
Lüfter Lager (Typ) Hydro Bearing
Lüfter Anschluss 4Pin
Lüfter Nennspannung 12VDC
Lüfter Nennstrom 0.17A±10%A
Lüfter Stromverbrauch 2.04W
Pumpe Lebenserwartung 120000 hours
Pumpe Anschluss 3Pin
Pumpe Betriebsspannung 10.8~13.2VDC
Pumpe Nennspannung 12VDC
Pump Speed 2550±10%RPM
Pumpe Laststrom 0.21±10%A
Pumpe Stromverbrauch 2.52W
Nettogewicht 1318±10g
LED Typ Addressable RGB LED
LED Nennspannung 5VDC
LED Nennstrom 0.48±10%A
LED maximale Leistungsaufnahme 2.4W
LED Connector 3pin(+5V-D-G)
LED Control M/B with 5V ADD-RGB Header
EAN 6933412726487
P/N DP-GS-H12L-CSL240RGB

Produktabmessungen

Installation
