Description
QUADSTELLAR – the world’s first smart PC case has revolutionized conventions by allowing users to customize RGB lighting and heat dissipation systems through an APP

QUADSTELLAR provides a stylish, high-tech housing for the E-ATX mainboard, multiple graphics cards, power supply and cooling components in four independent compartments to eliminate inter-compartment heat dissipation interference to achieve maximum cooling efficiency
Return
Custom self-inspection 1
Custom self-inspection 2
Open inlet compartment
Close inlet compartment
Developed for power rig builders, QUADSTELLAR also comes with an APP for dynamic management of lighting, heat dissipation and active thermal control components

· Customizable RGB Lighting System to create a gamers’ exclusive gaming atmosphere
· Adjustable fan speed to achieve an optimal balance between speed and noise
· Intelligent temperature control, featuring higher accommodation and cooling performance
360° Overview
Optimized heat dissipation and ventilation channels designed using heat dissipation simulations, physical prototype testing, and IR spectrograms. Active thermal control gates provide maximum cooling efficiency

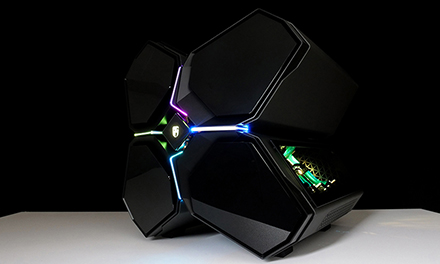

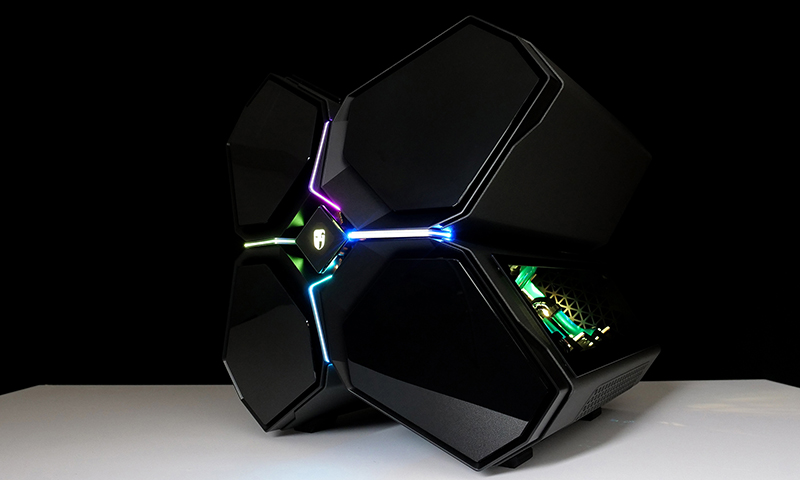

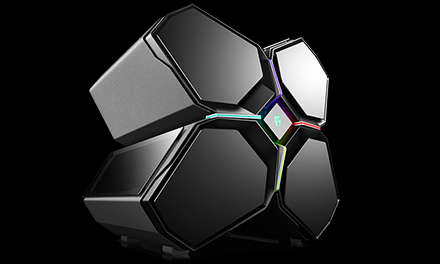

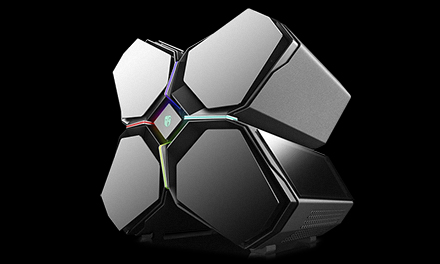

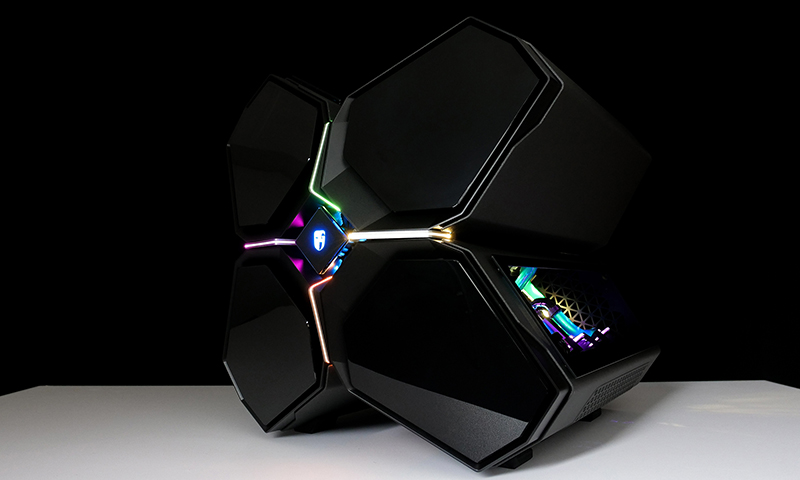

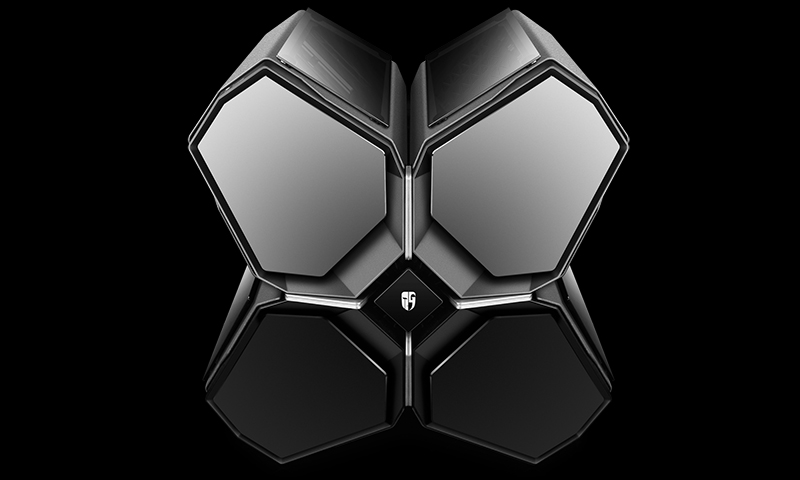

QUADSTELLAR comes with a futuristic, high-tech design, with a chassis frame crafted using precision engineered cast aluminum technology

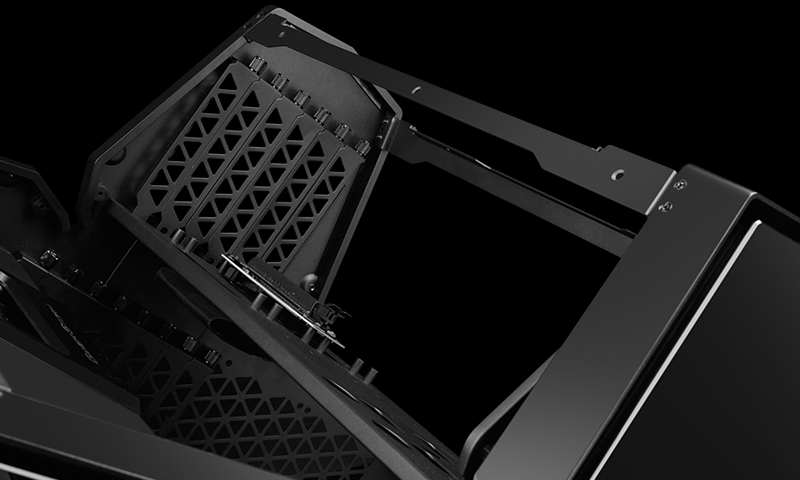

QUADSTELLAR comes with an independent graphic card compartment capable of supporting up to 3 graphics cards in SLI or CrossFire configurations
QUADSTELLAR comes with an independent graphic card compartment capable of supporting up to 3 graphics cards in SLI or CrossFire configurations

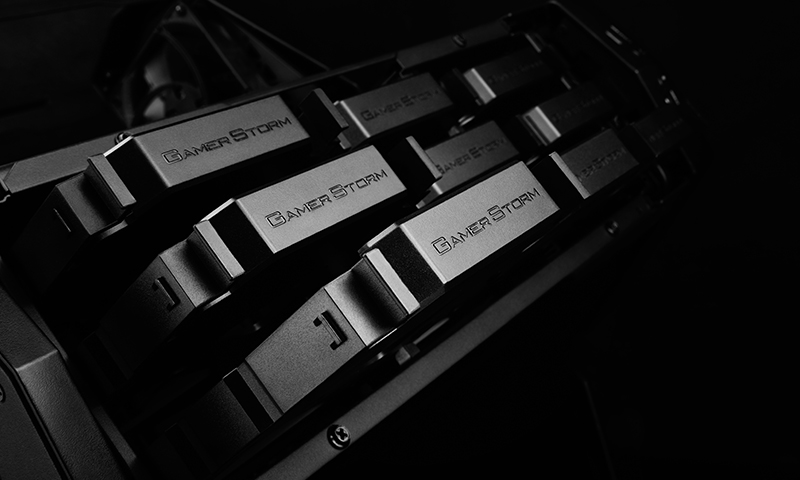

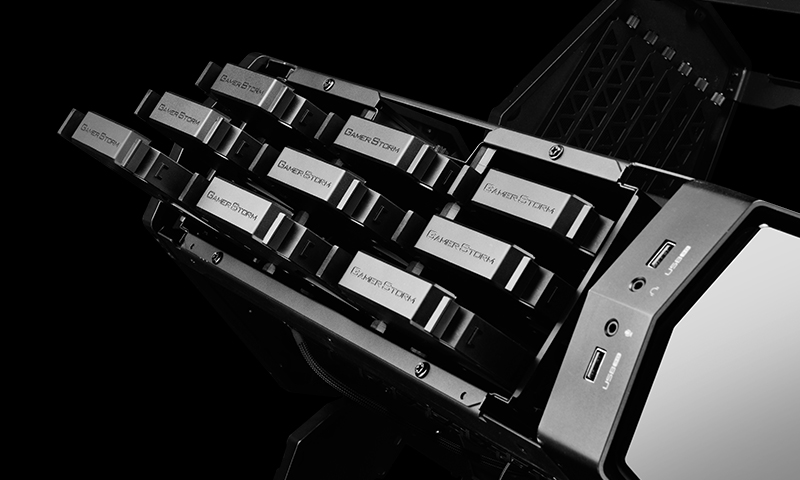

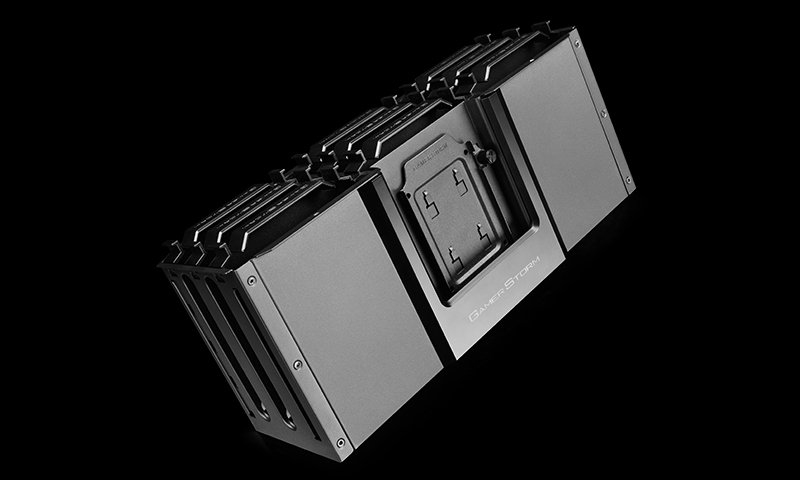

Storage compartment fitted with 8 x 3.5-inch and 2 x 2.5-inch drive bays (with additional 3 x 2.5-inch bays in the case) to offer a huge capacity for game files or data storage
Storage compartment fitted with 8 x 3.5-inch and 2 x 2.5-inch drive bays (with additional 3 x 2.5-inch bays in the case) to offer a huge capacity for game files or data storage

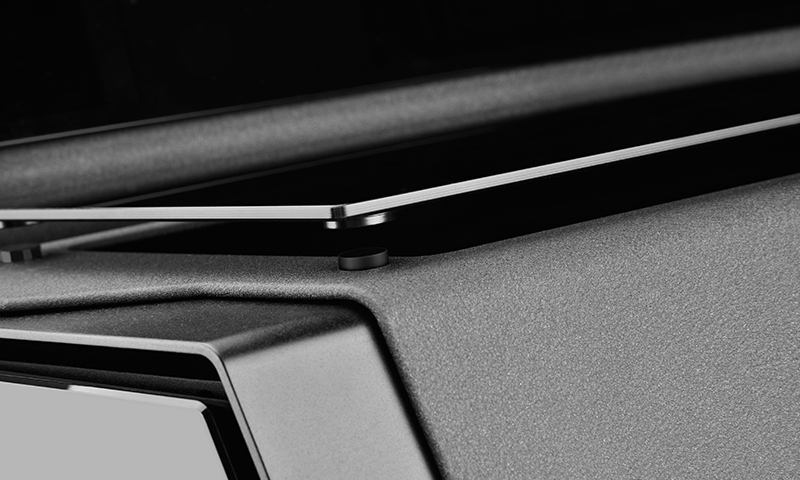

Magnet-mounted tempered glass panels (screwless) – neat & clean
Magnet-mounted tempered glass panels (screwless) – neat & clean
How to switch to RGB Motherboard control
2.Connect with the cable offered by motherboard
1.Connect the cable provided in box onto the 3pin header on control-board as indicated
3.Put it onto the ADD_HEADER on motherboard as indicated
4.Switch to “External Control”on APP

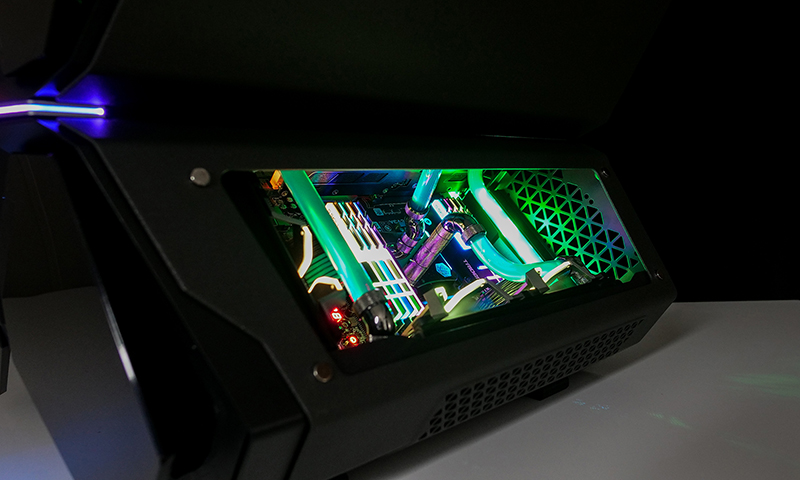

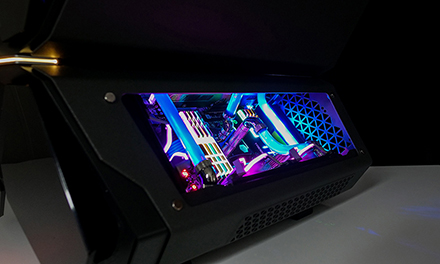

Mainboard compartment is compatible with E-ATX motherboards (max length: 330 mm) and capable of supporting 4-way SLI
Mainboard compartment is compatible with E-ATX motherboards (max length: 330 mm) and capable of supporting 4-way SLI

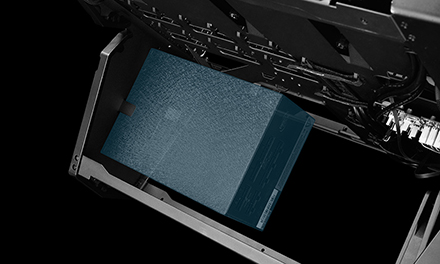

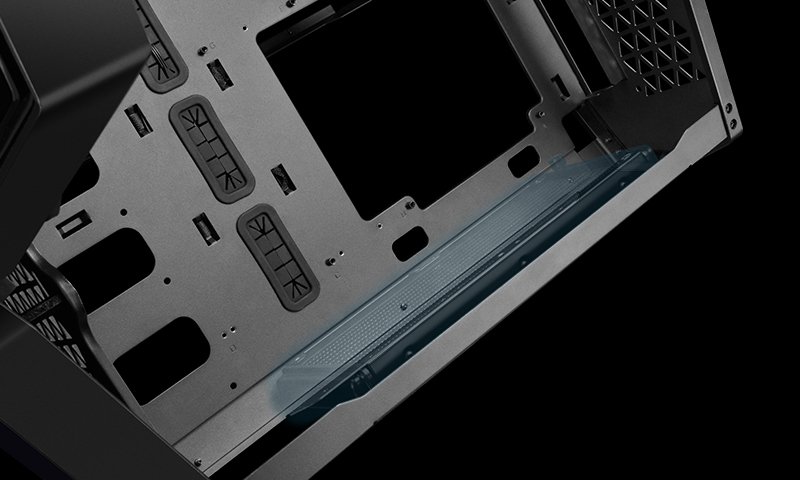

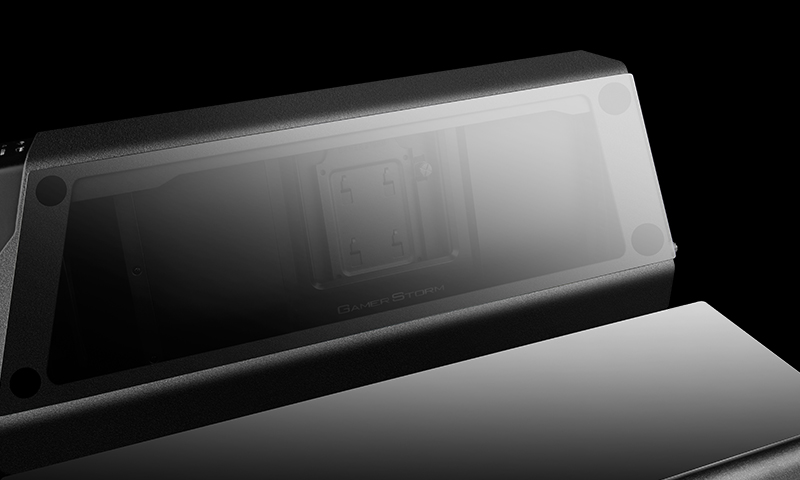

Independent housing for the power supply and compatibility with longer ATX power supply systems
Independent housing for the power supply and compatibility with longer ATX power supply systems

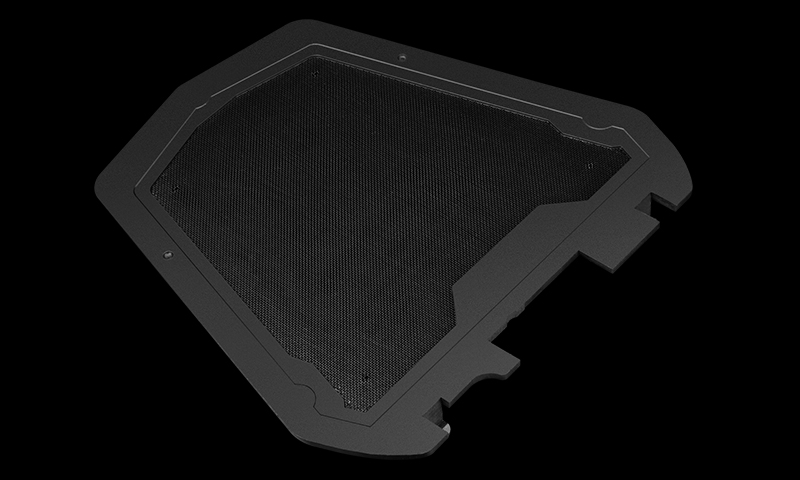

Magnet-mounted dust filter provided at the front panel, offering users easy removal and cleaning experience
All-metal structure ensures overall rigidity and quality while keeping the weight down

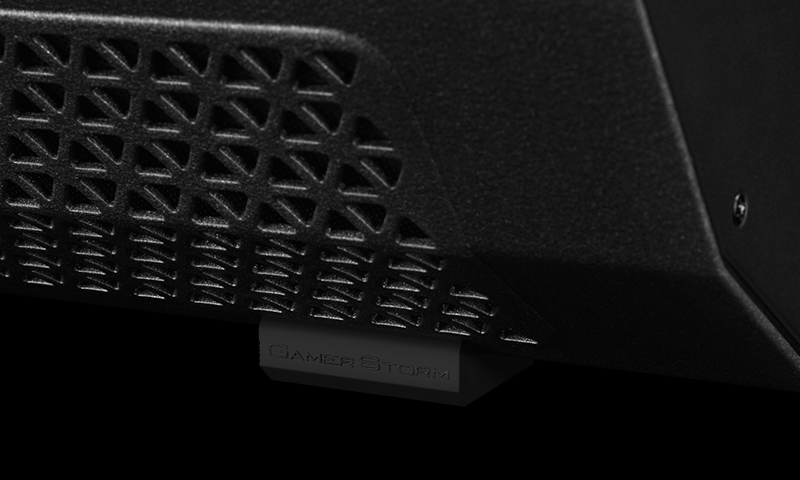

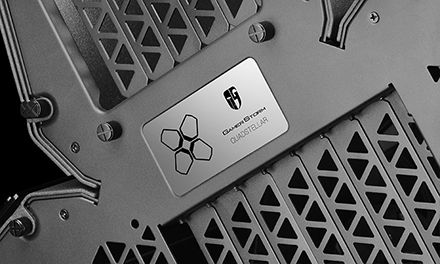

QUADSTELLAR nameplate in the rear, creating your exclusive authentication

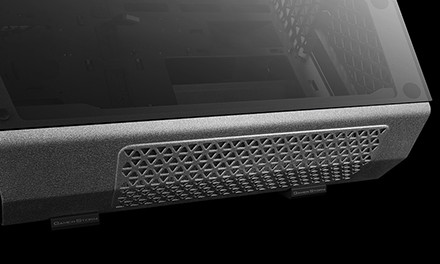

Novel triangular vent designs provide a great boost to ventilation rate and improved cooling performance

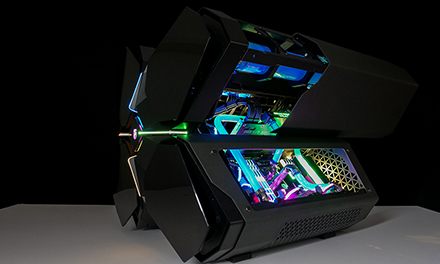

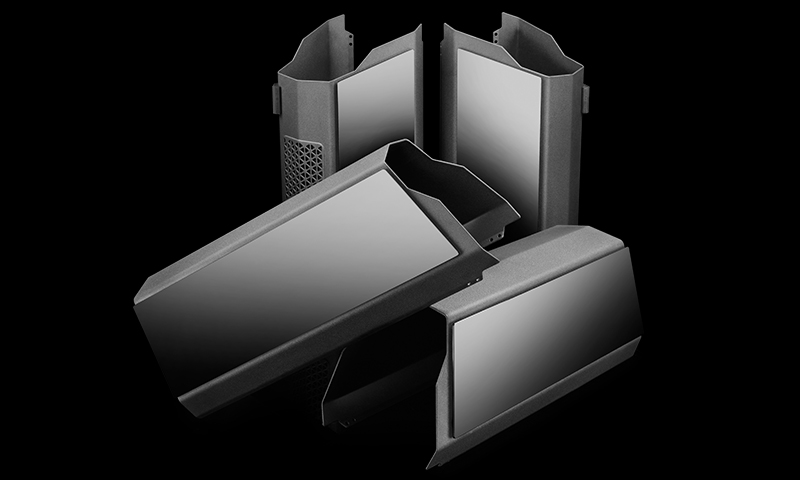

Outfitted with 4 independent functional compartments to eliminate heat dissipation interference for different hardware components
Optimized heat dissipation ventilation channels designed using heat dissipation simulation, physical prototype testing, and IR spectrograms

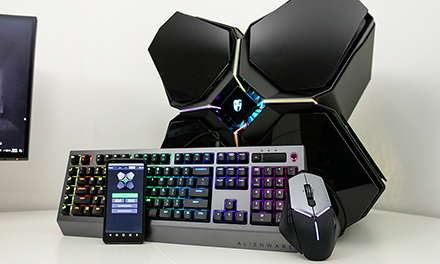

Smart mobile device APP control for dynamic management of lighting / heat dissipation / active thermal control gates

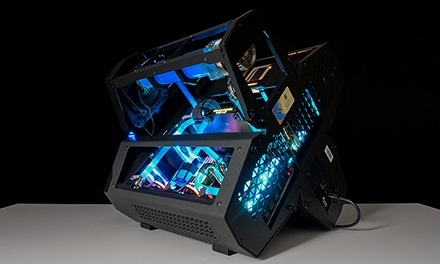

Chassis frame crafted using precision engineered cast aluminum technology, enhancing overall quality while maximizing weight reduction features of QUADSTELLAR

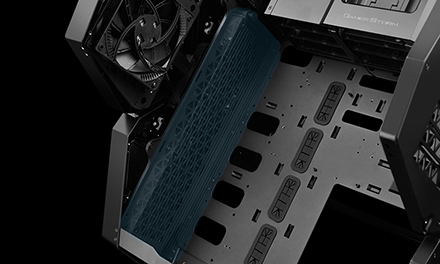

Reserved areas for installing high-end separable water-cooling accessories to maximize the gamer vibe and compatibility
Fitted with 8 x 3.5-inch and 2 x 2.5-inch drive bays (with additional 3 x 2.5-inch bays in the case) to offer a huge capacity for game files or data storage
Independent graphic card compartment supports up to 3-WAY SLI / CrossFire cards(or normal 4 – WAY)
Pre-installed one extra PCI-E Extension Cable (PEC300), if you need more, please buy PEC300 separately from your local market

Technical Spec

Motherboards E-ATX (305×330mm Max)/ATX/M-ATX/Mini-ITX
Materials SPCC, Aluminum, Tempered Glass
Product Dimension 538×483×493mm (L×W×H)
Net Weight 14.5 kg
Gross Weight 17.8 kg
5.25" Drive Bays 0
RGB Lights RGB lighting effects controlled by Quadstellar APP(Addressable RGB Sync Supported)
3.5"/2.5''Drive Bays 8
2.5" Drive Bays 5
I/O Panel 2×USB3.0/Audio(HD)×1/Mic×1
Expansion Slots 8+6
Cooling Fans Pre-installed: Patented TF120 Fan×5pcs(Rear: 1×120mm; Front: 4×120mm); Optional: Front: 6×120mm; Rear:1×120/2×80mm; Side: 2×120mm
Power Supply Type ATX PS2 (300mm length max)
CPU Cooler Compatibility 110mm height max; Liquid Cooler Compatibility: Front: 120/240/360mm; Bottom: 120/240mm(28mm thickness MAX);
Graphic Card Compatibility 380mm max
Carton Dimension 598×565×567mm (L×W×H)
EAN 6933412713470
P/N DP-EATX-QUADSTLR
