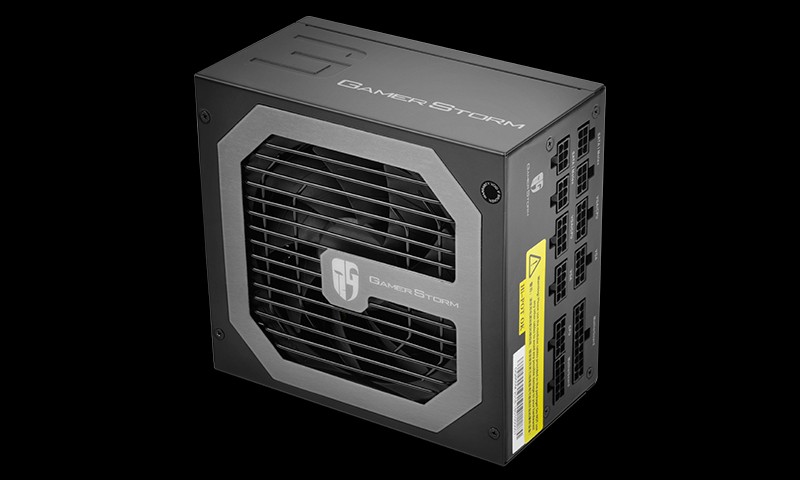

DQ850-M GAMER STORM POWER SUPPLY

Description

GamerStorm DQ850-M Series power supplies give you extremely tight voltage control, quiet operation, 80 PLUS Gold-certified efficiency and black casing, and fully modular cabling. It’s built with 100% Japanese 105℃ capacitors; they’re a great choice for high-performance PCs where reliability is essential. 80 PLUS Gold efficiency reduces operating cost and excess heat. It is equipped with 120mm FDB speed adjustable silent fan. We give it a 10 year warranty. It is sure to be one of the most ideal equipment for gamers.

80 PLUS Gold

80 PLUS® Gold certified - Up to 87~90% efficient . Click here to view the certification.

Silent and High Performance Fan

120mm silent fan with temperature function to provide incredible performance-noise ratio.

High Grade Components

Details Discovered

High grade Japanese 105℃ PFC Boost Capacitor

100% Japanese 105℃ Capacitors

Excellent 1- and 2-stage EMI filter circuit

Highly efficient Active PFC

Excellent manufacturing process

Highly reliable multi-layered protection

Voltage Regulation

Idle/Standby Efficiency

Full Modular Cable System

With full modular cable system, you can connect only the cables you need to ensure a tidy and nice-looking case.

Certification and Support

Compliant Intel ATX12V v2.4 & EPS 2.92

80 PLUS® GOLD certified - Up to 87~90% efficiency (20~100% loading)

High quality Japanese capacitors can obtain excellent reliability and long service life

Patented 120mm FDB Bearing fan with double-layer fan-blade, temperature control function, enjoys excellent performance & super low noise

Full modular design, with longer flat cable, exellent for cable management and increases the cooling capability of system

Double-Layer EMI Filter protects from electromagnetic interference & restrains noise

Intelligentized eco-friendly chipset, consume < 0.3W in its off-mode, compliant ERP standard

CircuitShield™ — OVP, UVP, SCP, OPP

Compliant Multi-Way SLI / CrossFire + Multi-Core CPUs

High reliability with an MTBF of at least 120,000 hours of use

Newly designed gaming style appearance under high-end gaming brand: GAMER STORM

DC to DC design, make it more stable, stronger and higher efficiency

Ready for AMD Ryzen Threadripper & Intel Skylake LGA2066 CPU

AC INPUT	VOLTAGE		CURRENT				FREQUENCY
	100-240V		6.0-12.0A				47-63Hz
DC OUTPUT	+3.3V	+5V	+12V MBPH	+12V CPU	+12V VGA1	+12V VGA2	-12V	+5VSB
CURRENT(Max)	22A	22A	25A	25A	40A	40A	0.3A	2.5A
OUTPUT(Max)	120W		850W				3.6W	12.5W
RATED POWER	850W

Mainboard (24Pin)

EPS ATX12V (4+4Pin)

PCI-E (6+2Pin)

SATA

Peripheral (Big 4Pin)

Technical Spec

Model	DQ850-M
Type	ATX 12V 2.92 / V2.4
Certifications	80PLUS GOLD
Dimension	150×160×86mm (W × L × H)
Output Capacity	850W
Input Voltage	100~240V
Input Current	12.0A/5.0A
Input Frequency Range	47~63Hz
Fan Size	120mm FDB FAN
PFC	Active PFC (>0.99)
Power Good Signal	100-500ms
Hold Up Time	>16ms
Efficiency	90% Under Typical Load
Protection	OVP/UVP/SCP/OPP
Operation Temperature	0~40°C
Regulatory	CE/CB/CCC/EAC/FCC
MTBF	120,000 Hours
EAN	6933412798880
P/N	P/N:DP-GD-DQ850M
