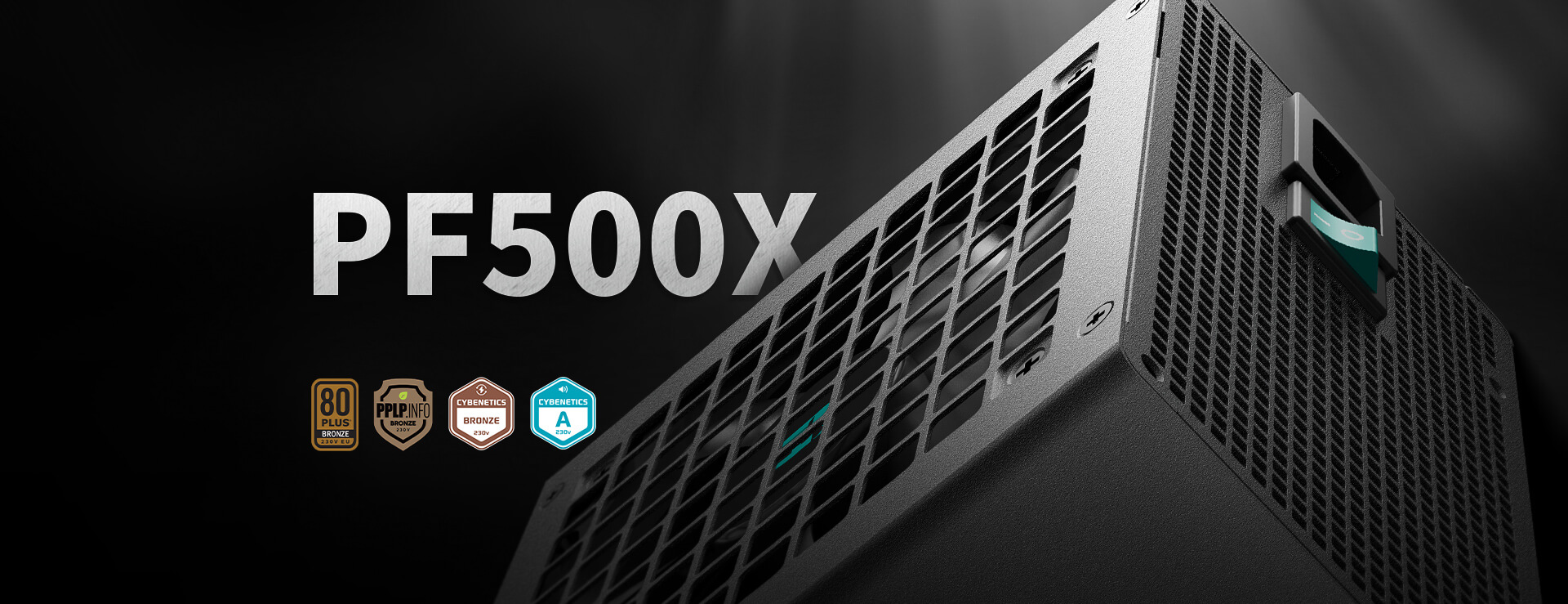

MULTIPLE BRONZE EFFICIENCY CERTIFICATIONS
The *bronze efficiency obtained from 80 PLUS, Cybenetics, and PPLP, ensuring 88% efficiency under typical loads (50%), significantly reduced energy loss and heat generation while extending the service life of the PSU.
*Due to the different testing standards between the institutions, all packaging and labels will use the Bronze badge to ensure uniformity and compliance.
TAIWANESE + JAPANESE PREMIUM CAPACITORS
By using the Taiwanese premium solid and electrolytic capacitors, the PF-X series can ensure a hold-up time ≥ 16ms under 75% load, which provides reliable protection for abnormal power outages.
The 5V Stand-By rail uses an electrolytic capacitor from two major Japanese brands, which have a four-fold life span compared with normal, ensuring stable standby throughout the day.
RELIABLE TOPOLOGY
To meet the Intel ATX 2.52 standard, using Active PFC + Double Forward + DC to DC, combined with a dual-stage EMI circuit. It significantly reduces ripple noise and voltage deviation, providing better electrical performance and compatibility.
WIDE VOLTAGE ADAPTATION
Supporting 180V-264V wide voltage operation and extreme full-load working conditions under room temperature at a 160V low-voltage grid were supported to avoid voltage instability shutdown.
(Due to safety requirements, the voltage parameters of the nameplate need to leave 10% redundancy, the above is the actual support working voltage)
Strict Safety Standard
Strictly following global safety standards, beyond competitors, including the 40℃ and 5000m safety levels, meets the requirements for high-temperature and high-altitude areas.
40K HRS MTBF LONG-LIFE FAN
A high-quality long-life bearing fan extends operational life by 30% compared to a normal fan and can continuously function for 7×24 hrs in a 40℃ environment. Meanwhile, the aerodynamic design based on PCB layout and flow resistance offers superior stability and quiet operation.
High-Grade Configurations
Equipped with GAMER STORM's custom-molded sleeved cables significantly enhances the installation and wiring experience.
Peace of Mind
The PF-X is equipped with eight protection IC providing comprehensive safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temp Protection
Over Current Protection
Under Voltage Protection
Surge & Inrush Protection
No Load Operation
EXCEPTIONAL WARRANTY
Standing behind the high standards Gamer Storm has set for our products, we provide a 3-year limited warranty to ensure worry-free service and support for our customers.
Main Power Connector 24 (20+4)Pin x1
x1
CPU (4+4)Pin x1
x1
PCI-E (6+2)Pin x2
x1
SATA x3 + 4Pin Peripheral x1
x2

Technical Spec


Type ATX12V V2.52
Product Dimensions 150×140×86mm (W x L x H)
Efficiency certification 80PLUS 230 EU Bronze/CYBENETICS Bronze /CYBENETICS A 230V/PPLP 230V Bronze
Fan Size 120mm
Fan Bearing Longlife HYB
Topology Active PFC+DC to DC
Capacitors Taiwanese + Japanese Electrolytic Capacitors
Power Good Signal 100-150ms
Hold Up Time ≥16ms(75% Load)
Efficiency ≥88% Under Typical Load(50% Loading)
Protection OPP/OVP/OCP/SCP/OTP/UVP/SIP/NLO
Operation Temperature 0-40°C
Regulatory CE/TUV-RH/CCC/RCM/KC
Erp Regulation ErP 2014
Environment Protection WEEE/中国 RoHS/Triman
MTBF 40,000 Hours
