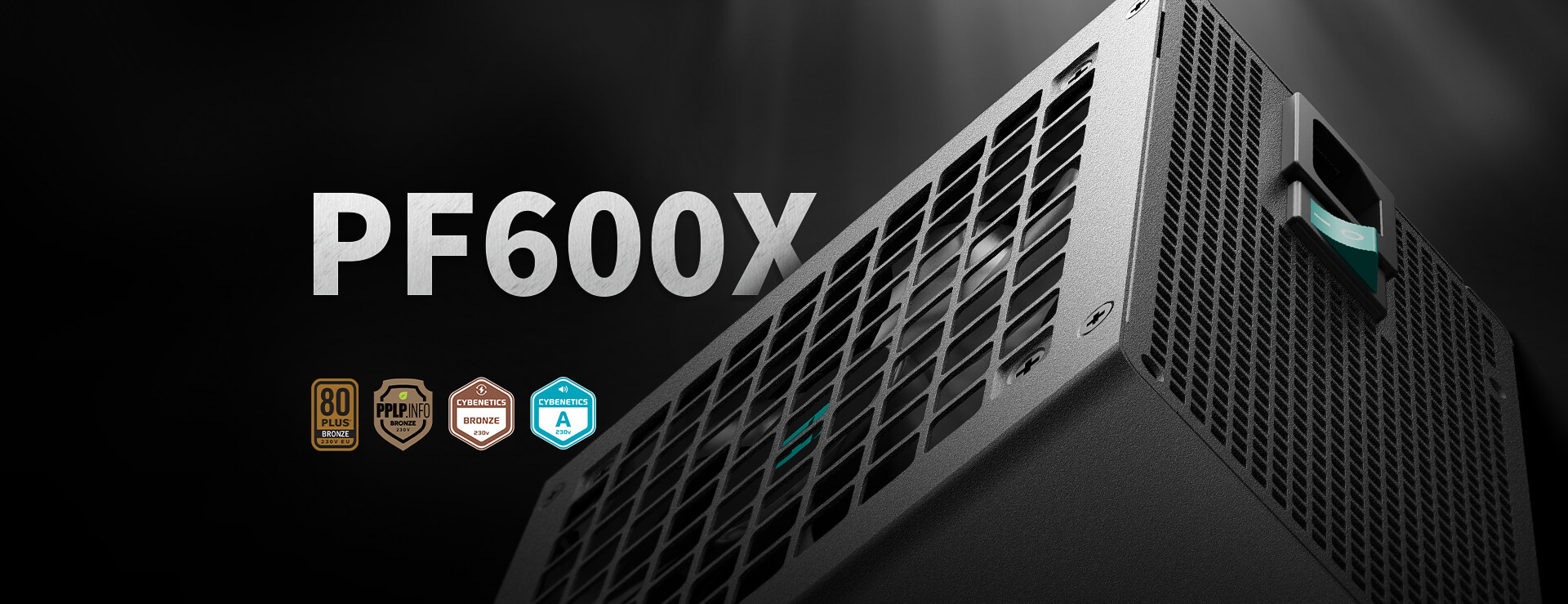

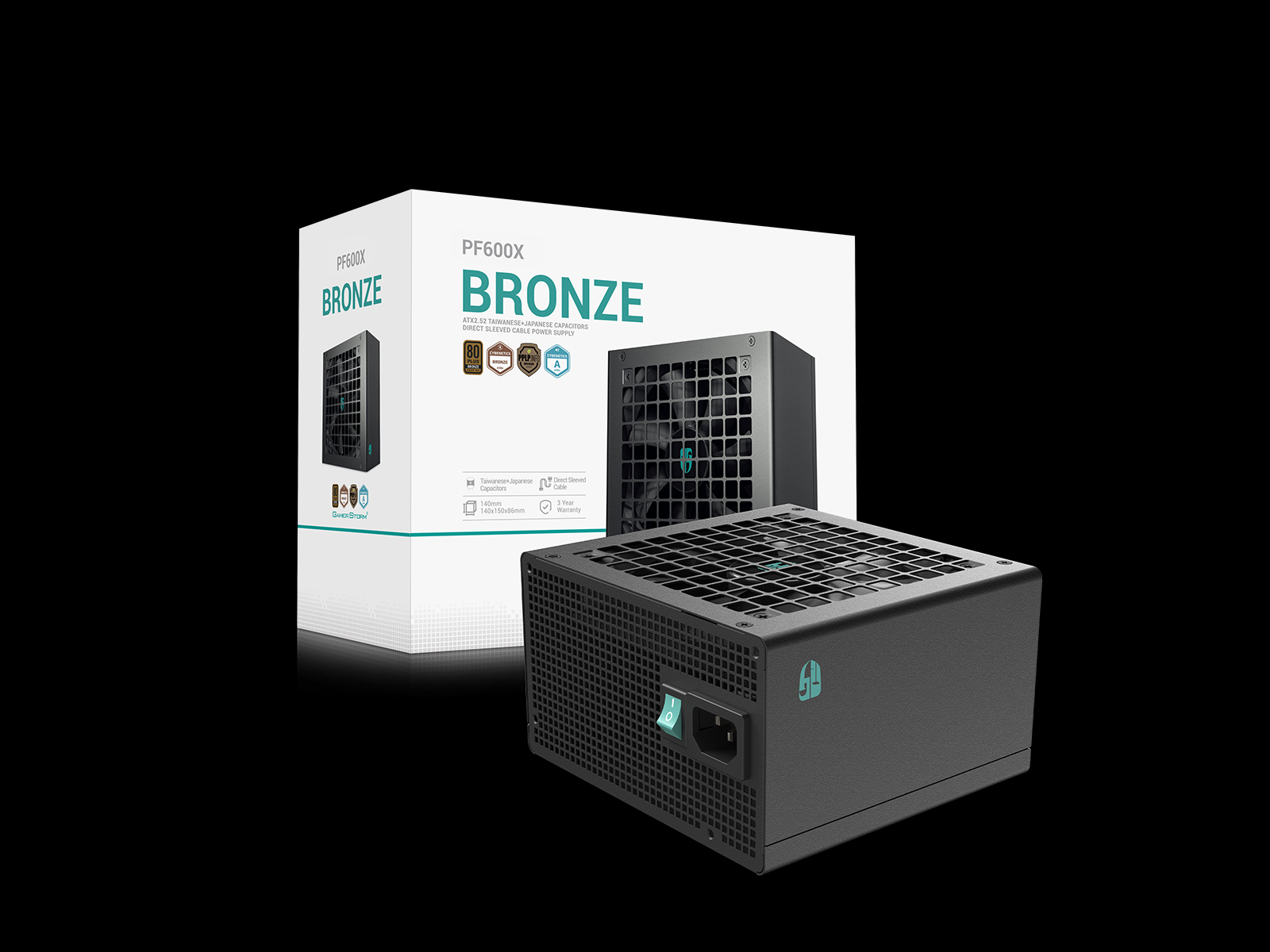

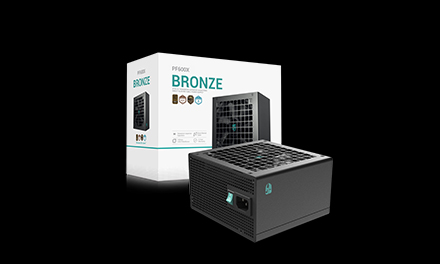

PF600X GAMER STORM POWER SUPPLY

MULTIPLE BRONZE EFFICIENCY CERTIFICATIONS

The *bronze efficiency obtained from 80 PLUS, Cybenetics, and PPLP, ensuring 88% efficiency under typical loads (50%), significantly reduced energy loss and heat generation while extending the service life of the PSU.

*Due to the different testing standards between the institutions, all packaging and labels will use the Bronze badge to ensure uniformity and compliance.

TAIWANESE + JAPANESE PREMIUM CAPACITORS

By using the Taiwanese premium solid and electrolytic capacitors, the PF-X series can ensure a hold-up time ≥ 16ms under 75% load, which provides reliable protection for abnormal power outages.
The 5V Stand-By rail uses an electrolytic capacitor from two major Japanese brands, which have a four-fold life span compared with normal, ensuring stable standby throughout the day.

RELIABLE TOPOLOGY

To meet the Intel ATX 2.52 standard, using Active PFC + Double Forward + DC to DC, combined with a dual-stage EMI circuit. It significantly reduces ripple noise and voltage deviation, providing better electrical performance and compatibility.

WIDE VOLTAGE ADAPTATION

Supporting 180V-264V wide voltage operation and extreme full-load working conditions under room temperature at a 160V low-voltage grid were supported to avoid voltage instability shutdown.

(Due to safety requirements, the voltage parameters of the nameplate need to leave 10% redundancy, the above is the actual support working voltage)

Strict Safety Standard

Strictly following global safety standards, beyond competitors, including the 40℃ and 5000m safety levels, meets the requirements for high-temperature and high-altitude areas.

40K HRS MTBF LONG-LIFE FAN

A high-quality long-life bearing fan extends operational life by 30% compared to a normal fan and can continuously function for 7×24 hrs in a 40℃ environment. Meanwhile, the aerodynamic design based on PCB layout and flow resistance offers superior stability and quiet operation.

High-Grade Configurations

Equipped with GAMER STORM's custom-molded sleeved cables significantly enhances the installation and wiring experience.

Peace of Mind

The PF-X is equipped with eight protection IC providing comprehensive safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO.

Over Power Protection

Over Voltage Protection

Short Circuit Protection

Over Temp Protection

Over Current Protection

Under Voltage Protection

Surge & Inrush Protection

No Load Operation

EXCEPTIONAL WARRANTY

Standing behind the high standards Gamer Storm has set for our products, we provide a 3-year limited warranty to ensure worry-free service and support for our customers.

Main Power Connector 24 (20+4)Pin x1

CPU (4+4)Pin x2

PCI-E (6+2)Pin x1

SATA x3 + 4Pin Peripheral x1

AC INPUT	VOLTAGE		CURRENT	FREQUENCY
AC INPUT	200-240Vac		5A	50-60Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
CURRENT(Max)	16A	16A	50A	0.3A	3A
OUTPUT(Max)	100W		600W	3.6W	15W
TOTAL OUTPUT	600W

Technical Spec

Model	PF600X
Model No	PF600X-HD
Total Output	600W
Type	ATX12V V2.52
Product Dimensions	150×140×86mm (W x L x H)
Efficiency certification	80PLUS 230 EU Bronze/CYBENETICS Bronze /CYBENETICS A 230V/PPLP 230V Bronze
Fan Size	120mm
Fan Bearing	Longlife HYB
Topology	Active PFC+DC to DC
Capacitors	Taiwanese + Japanese Electrolytic Capacitors
Power Good Signal	100-150ms
Hold Up Time	≥16ms(75% Load)
Efficiency	≥88% Under Typical Load(50% Loading)
Protection	OPP/OVP/OCP/SCP/OTP/UVP/SIP/NLO
Operation Temperature	0-40°C
Regulatory	CE/TUV-RH/CCC/RCM/KC
Erp Regulation	ErP 2014
Environment Protection	WEEE/中国 RoHS/Triman
MTBF	40,000 Hours
