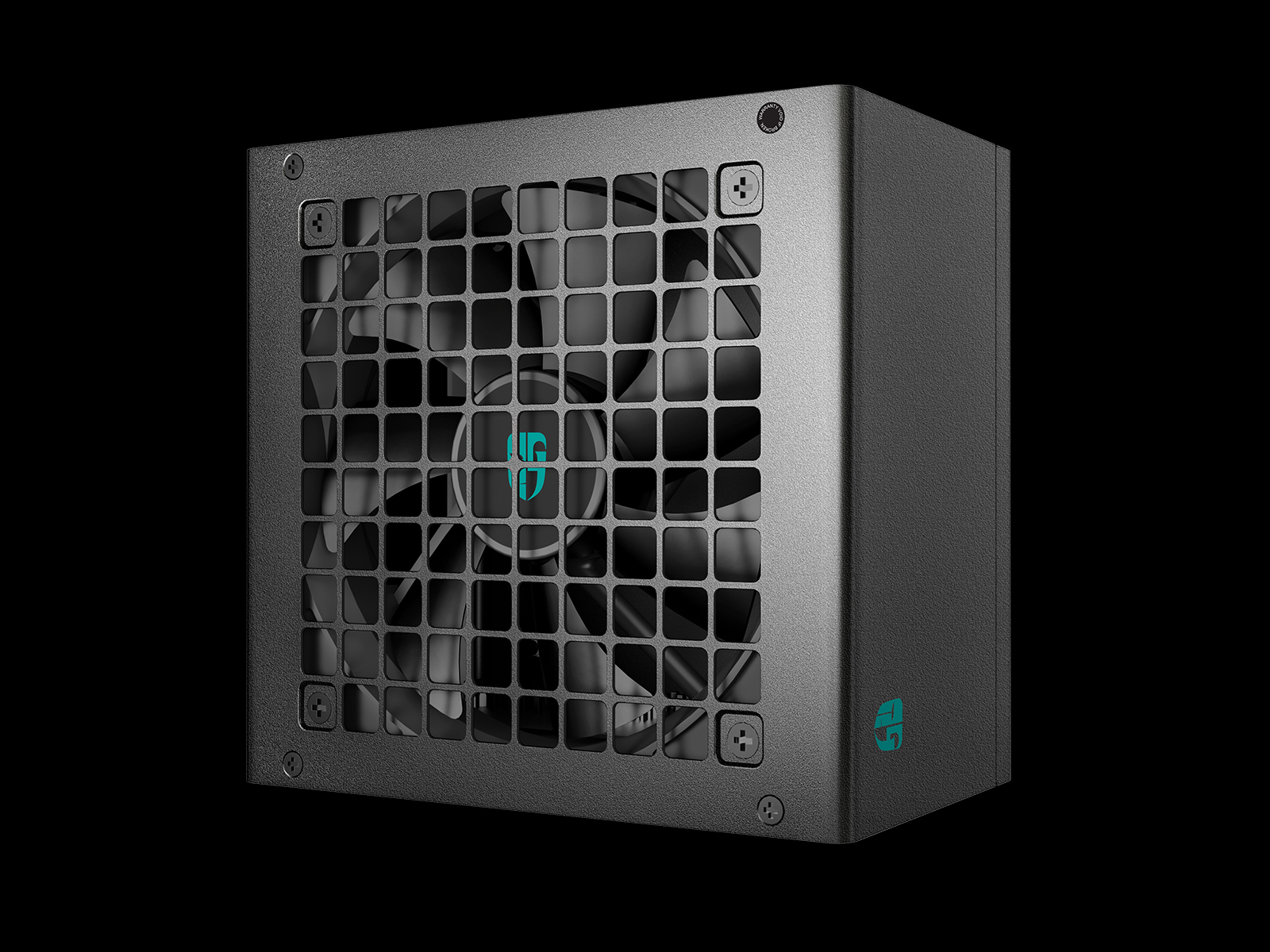

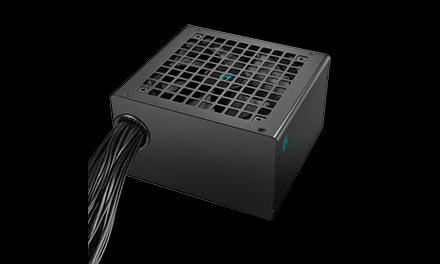

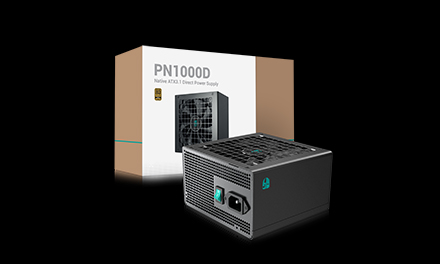

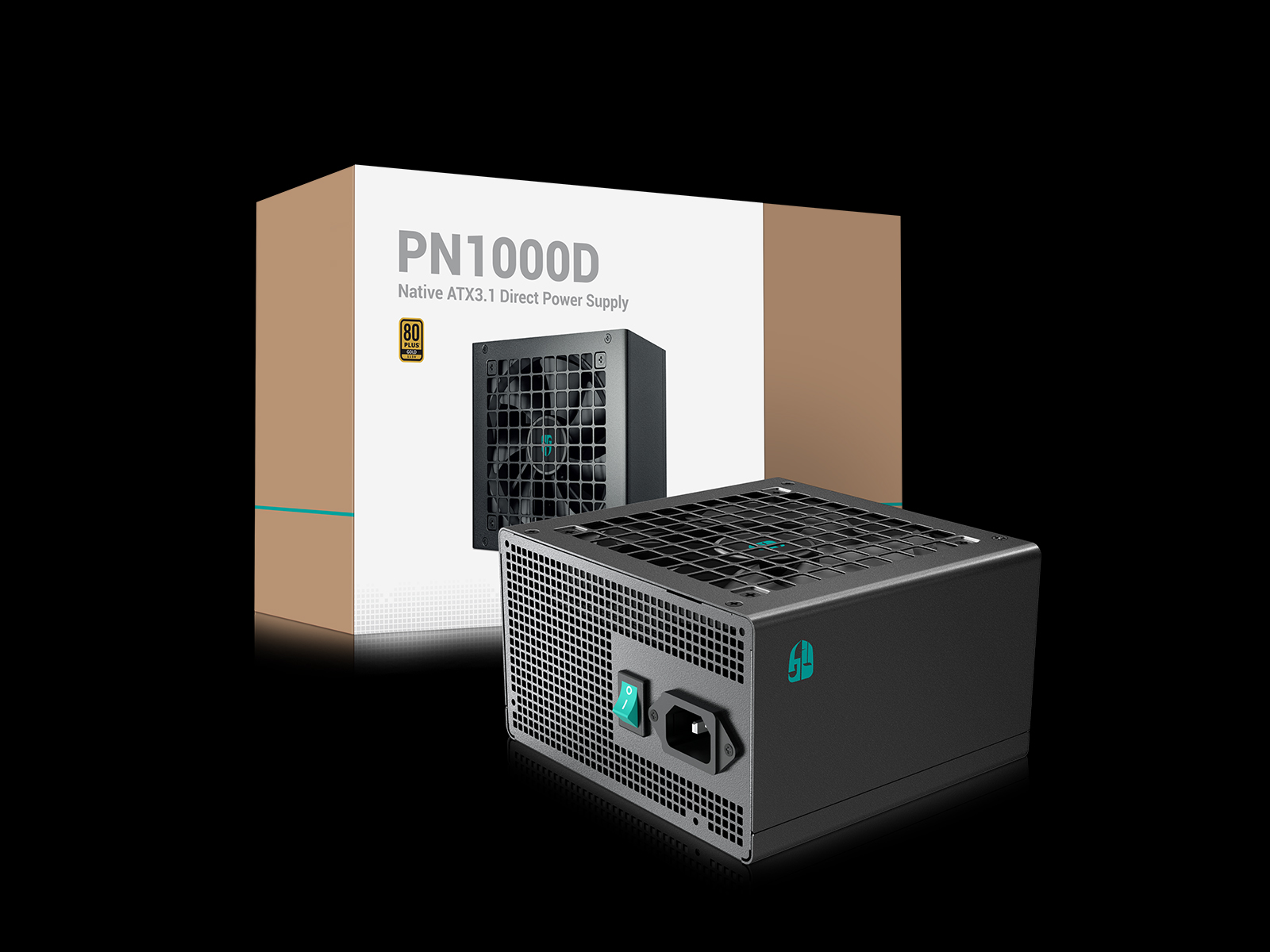

FUTURE PROOF
With the ability to provide three times the TGP for 0.1 ms, random power spikes will never be an issue. The PN1000D will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

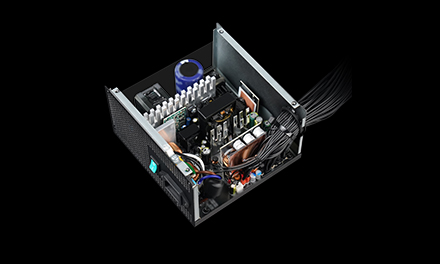

POWER YOU CAN TRUST

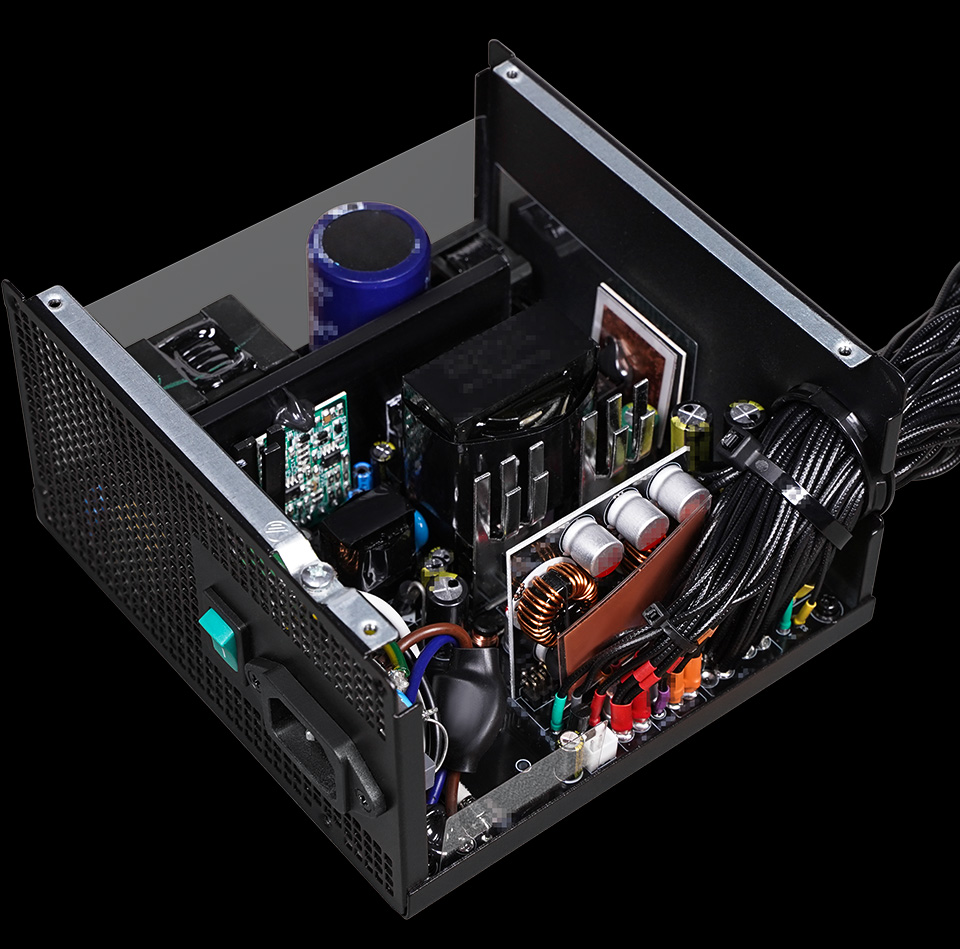

Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN1000D can keep the hold-up time to ≥ 16 ms under a high load of 80%.
12V-2x6
CABLE
PCI-E 5.1 POWER

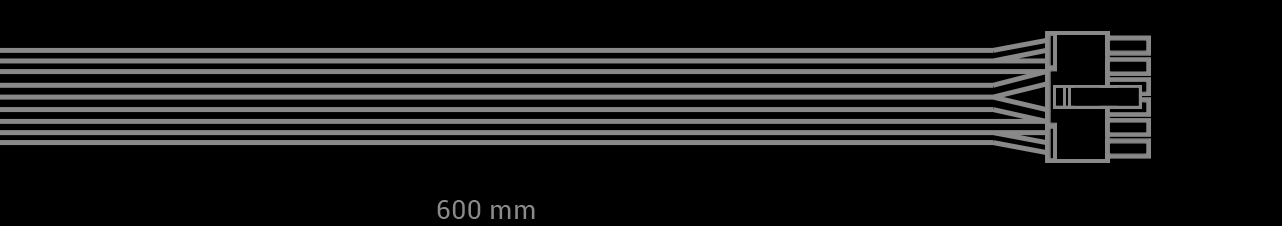

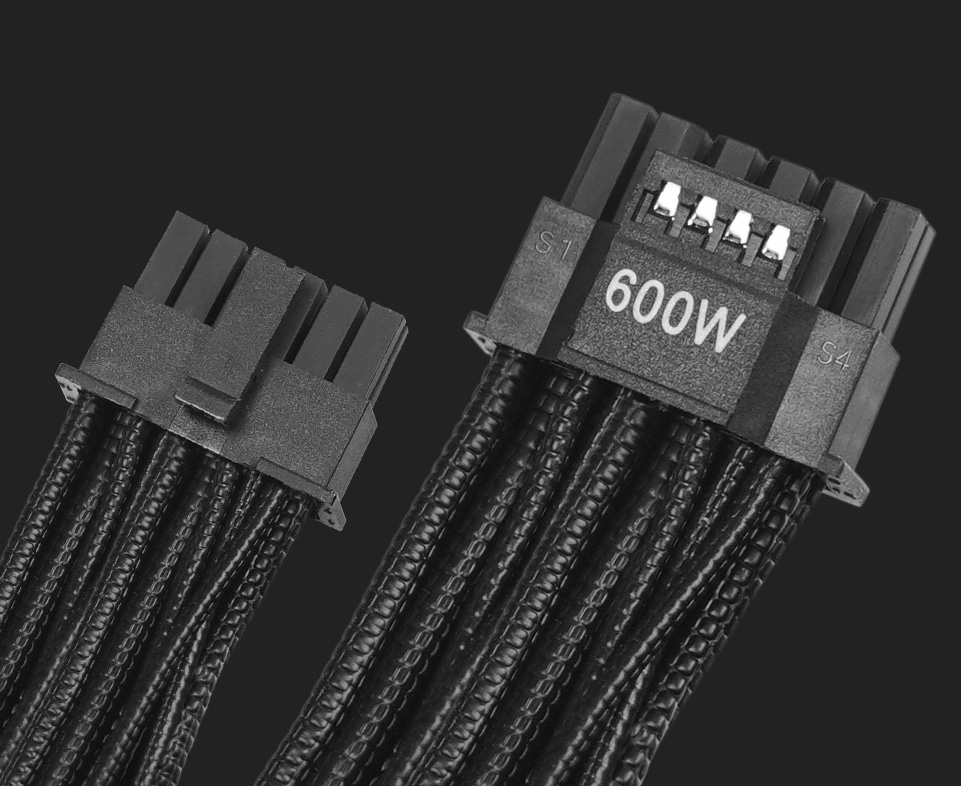

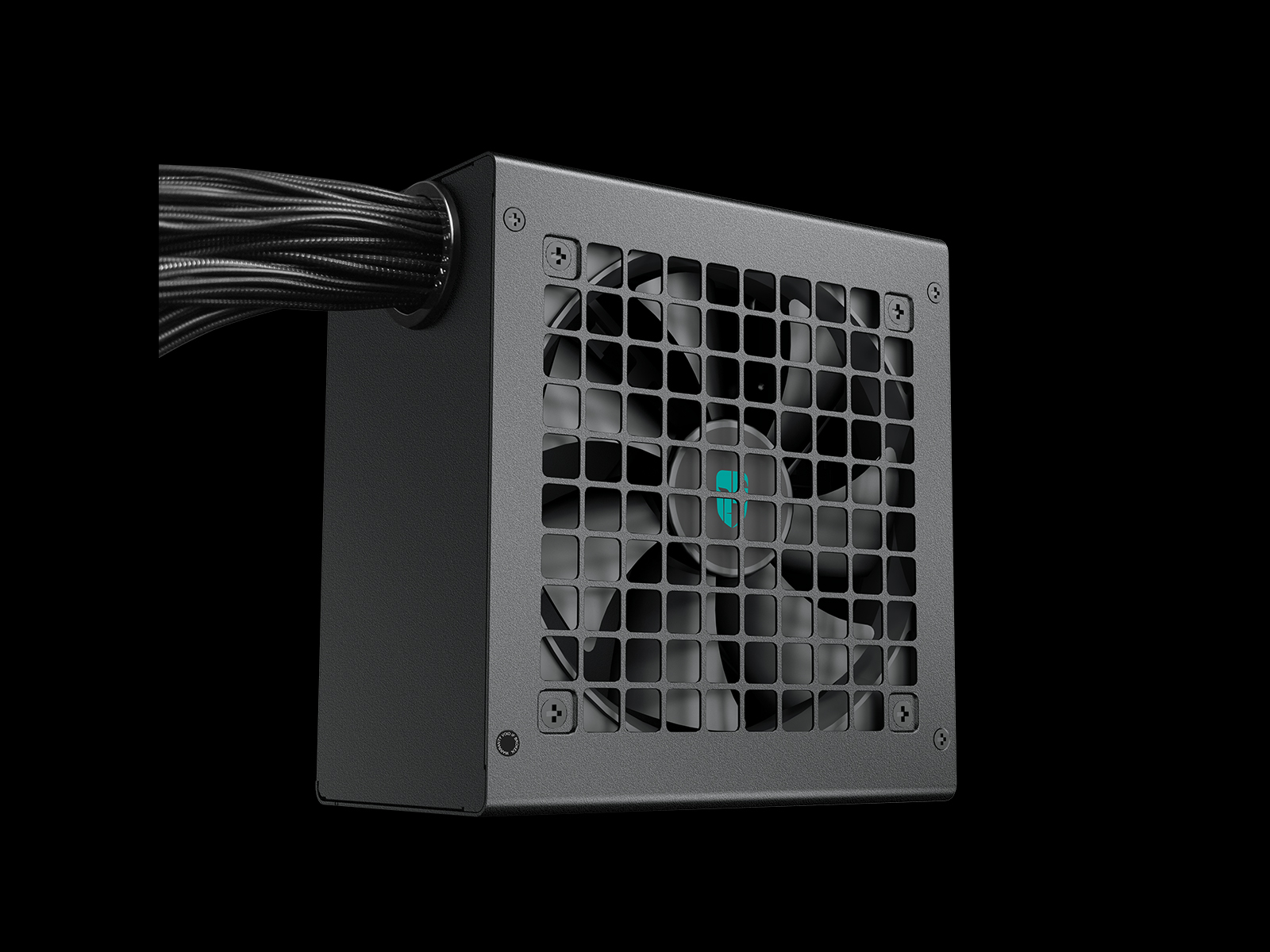

Equipped with a high-grade 105C-resistant 16AWG copper-core sleeved 12V-2x6 cable, the PN1000D provides up to 600W for modern GPUs.

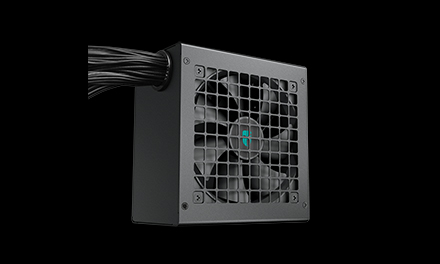

DYNAMIC HYDRO BEARING FAN

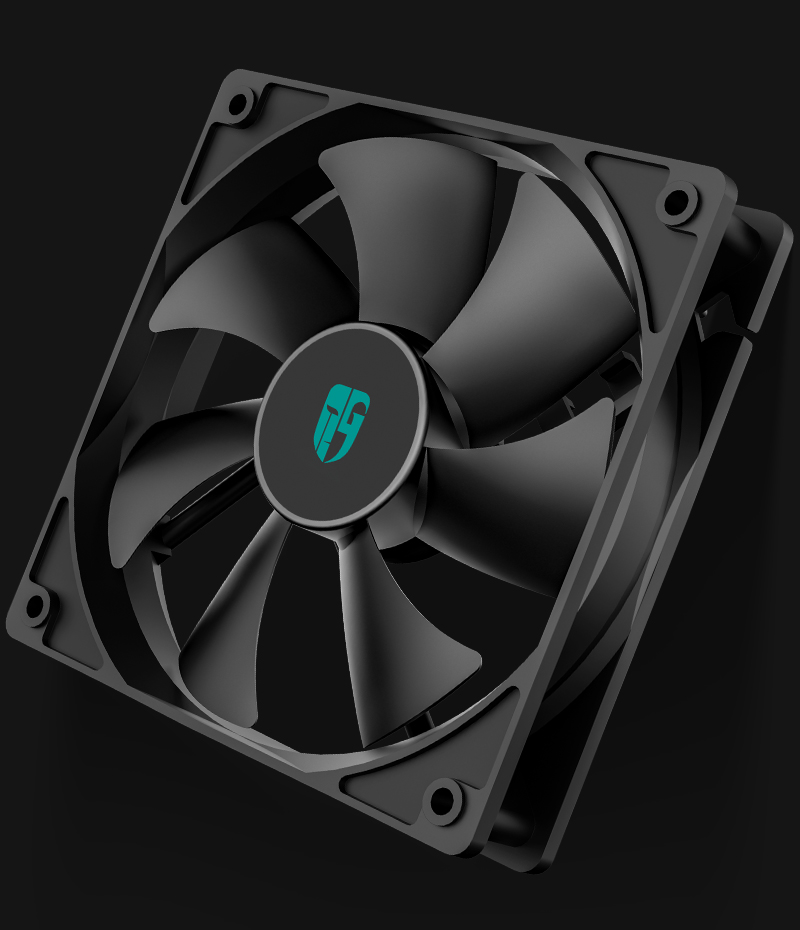

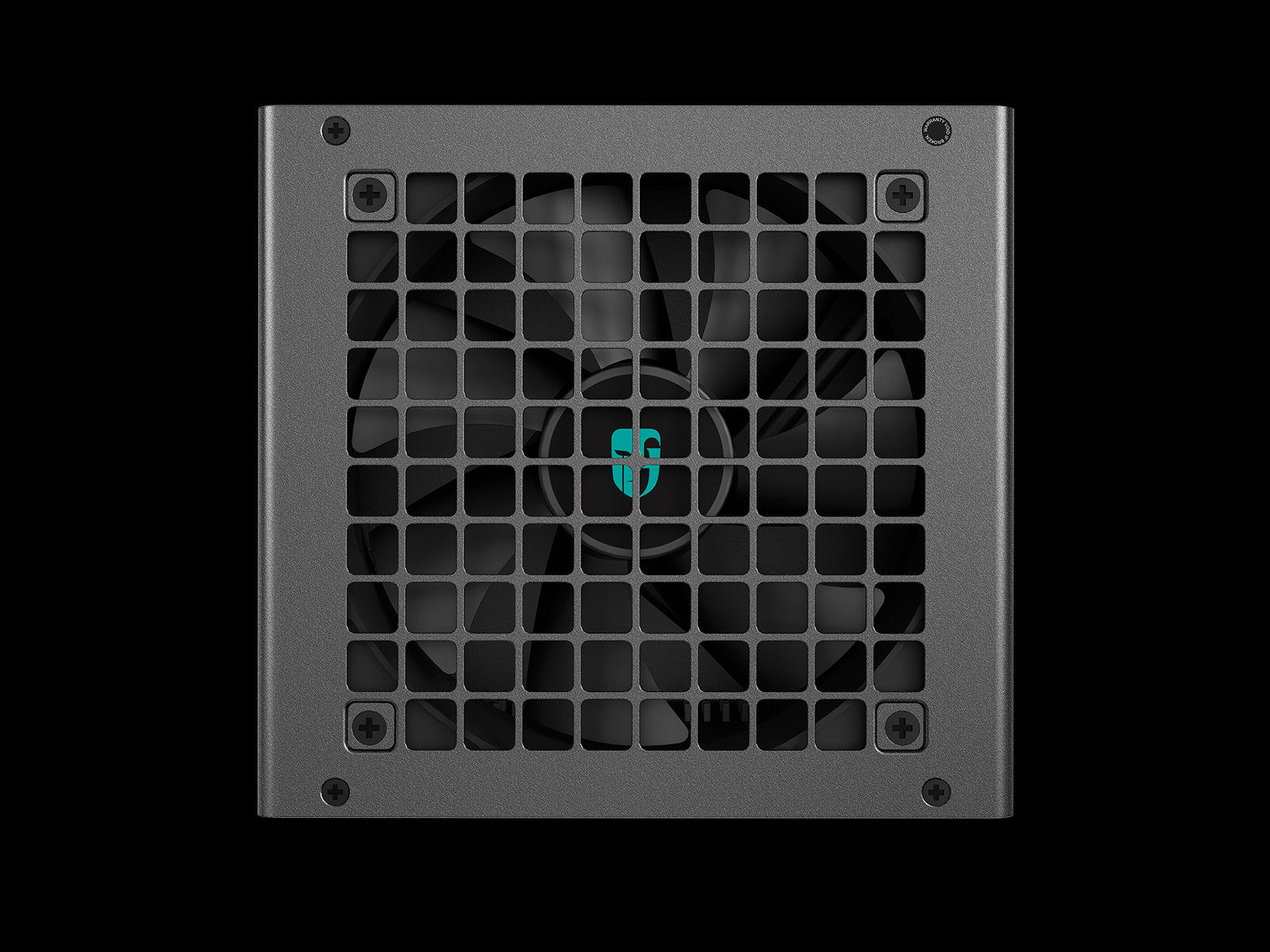

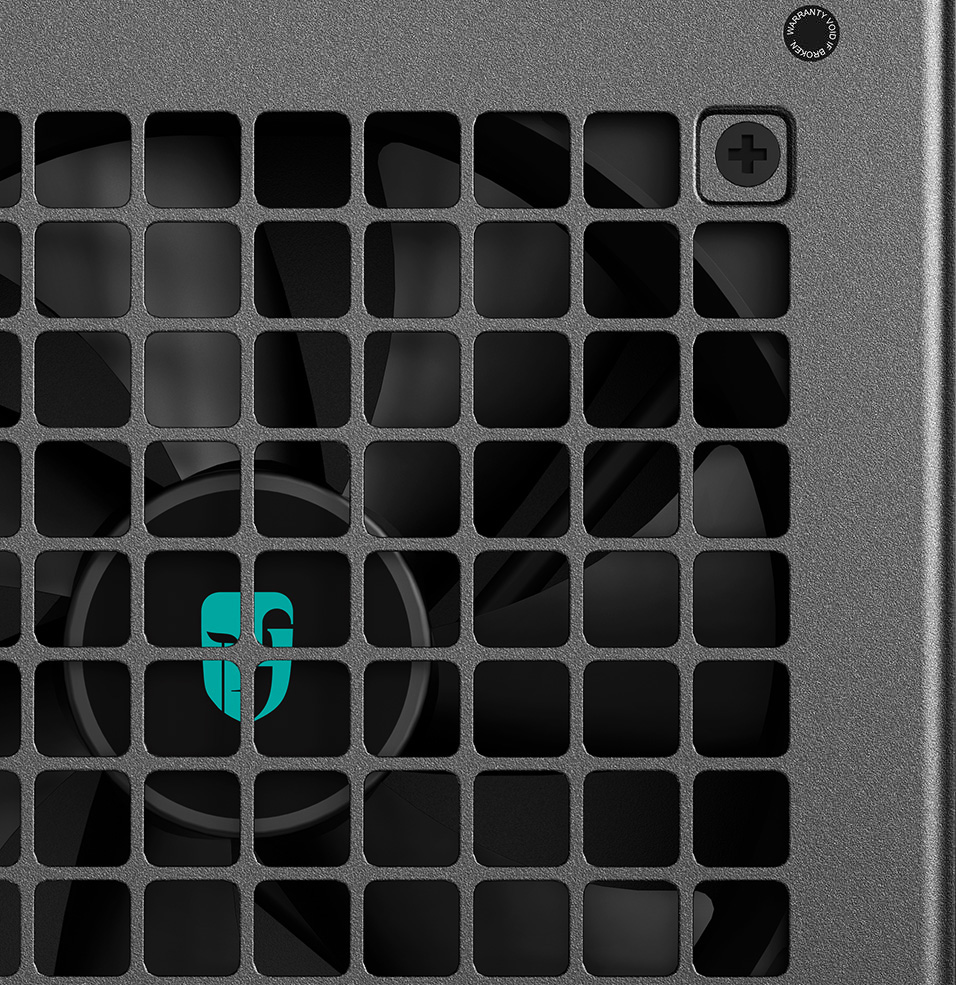

The PN1000D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.

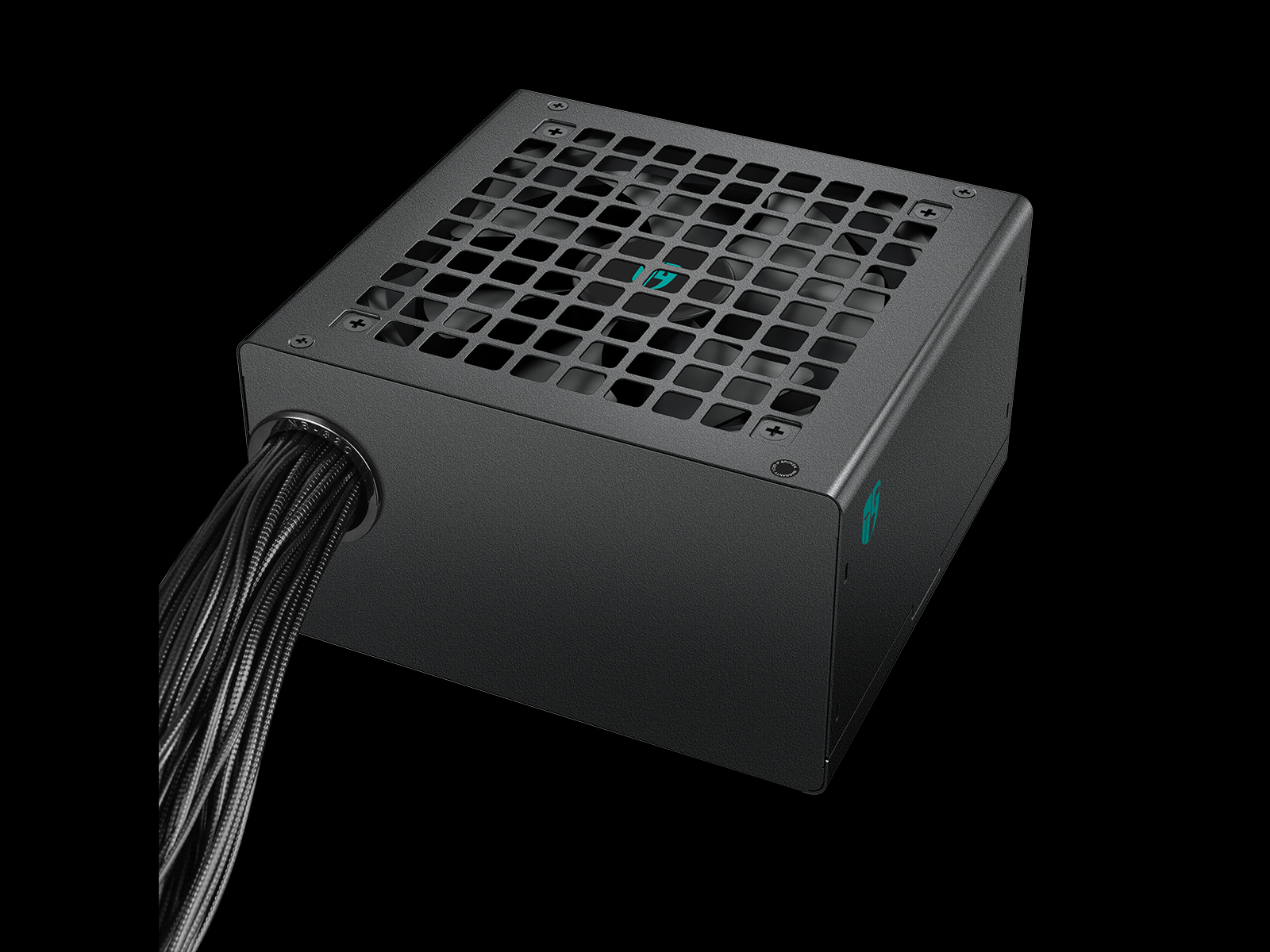

HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN1000D will operate at altitudes up to 5000 meters above sea level.
PEACE OF MIND
The PN1000D comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temp Protection
Over Current Protection
Under Voltage Protection
No Load Operation
Surge & Inrush Protection
EXCELLENT COVERAGE
The PN1000D is engineered and manufactured at such a high level that GamerStorm is offering a lengthy 10 years of trouble-free limited warranty coverage.
EXCELLENT COVERAGE
The PN1000D is engineered and manufactured at such a high level that GamerStorm is offering a lengthy 10 years of trouble-free limited warranty coverage.

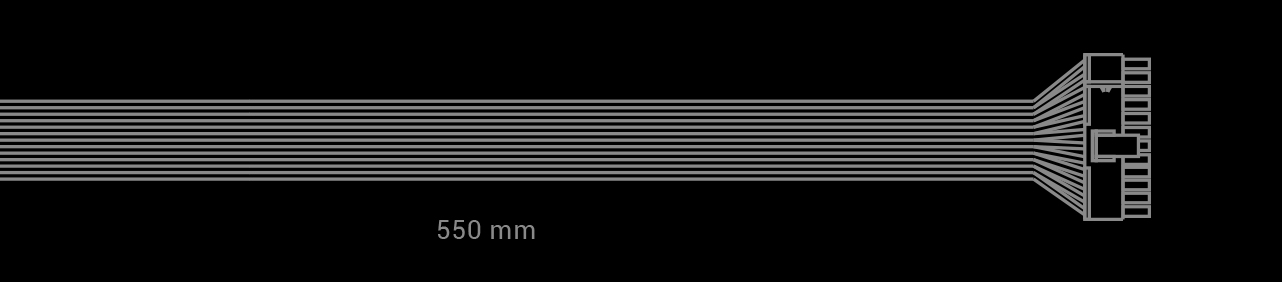

Main Power Connector 24 (20+4)Pin x1
X1
CPU (4+4)Pin x1
X2

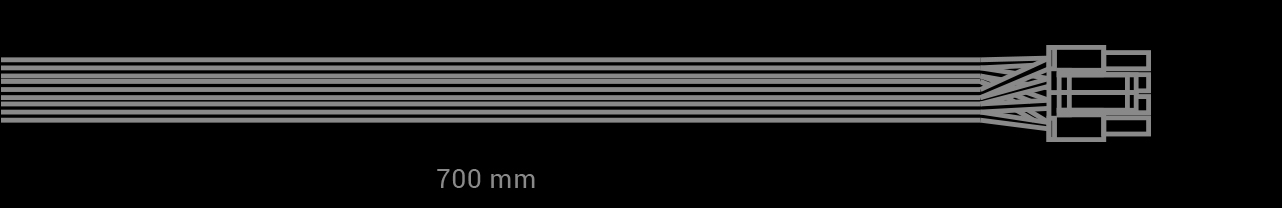

PCI-E (6+2)Pin x1
X3

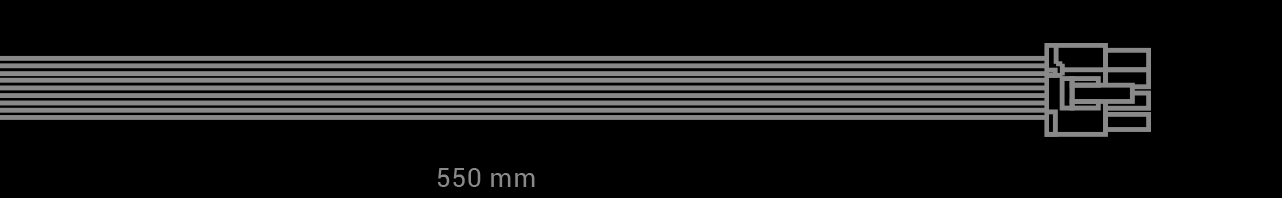

12V-2x6 (16Pin) x1
X1

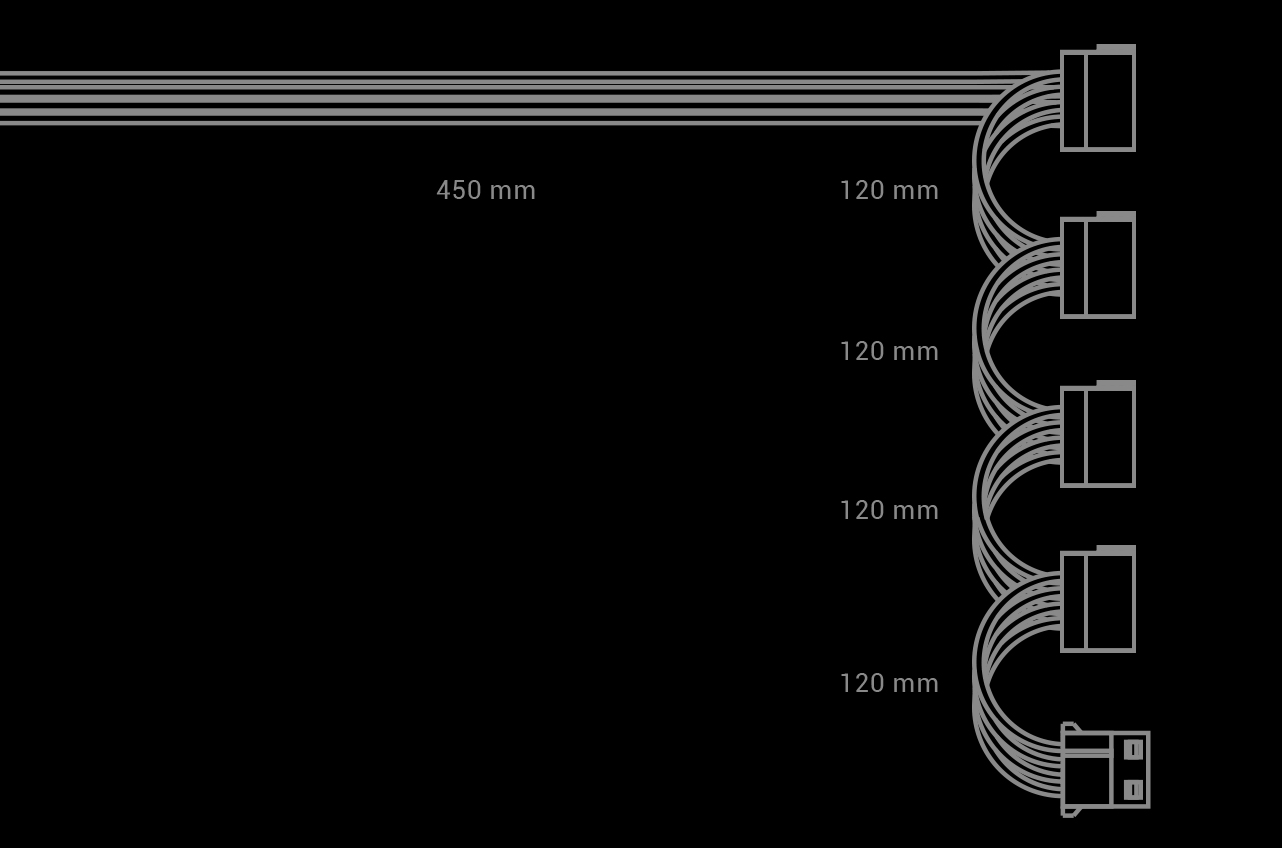

SATA x4 + 4Pin Peripheral x1
X2

Technical Spec


Type ATX12V V3.1
Product Dimensions 150×140×86mm (W x L x H)
Efficiency certification 80Plus Gold/Cybenetics Gold
Fan Size 120mm
Fan Bearing HYB(Hydro Bearing)
Topology Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors Chinese Electrolytic Capacitors
Power Good Signal 100-150ms
Hold Up Time ≥16ms(80% Load)
Efficiency ≥90% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature 0 - 40℃
Regulatory CE/CCC/TUV-RH/RCM
Erp Regulation ErP 2014
Environment Protection WEEE/中国 RoHS/Triman
MTBF 100,000 Hours
