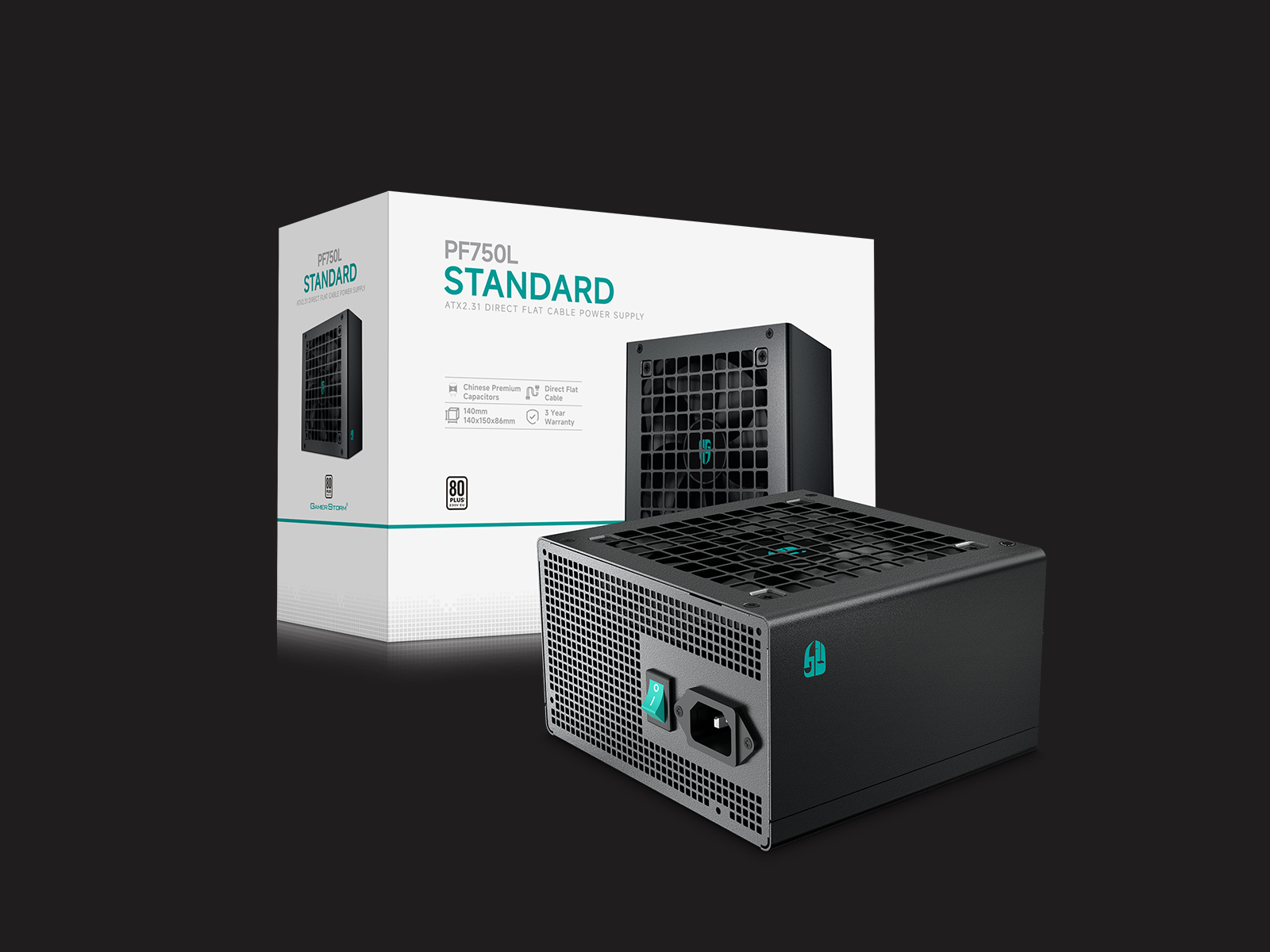

PF750L GAMER STORM POWER SUPPLY

ATX2.31 STANDARD

The GAMER STORM PF-L series offers reliable 80 PLUS 230V EU Standard efficiency to power computer system builds with stability and low noise performance.

Standard Efficiency Certification

The standard efficiency obtained from 80 PLUS, ensuring 85% efficiency under typical loads (50%), significantly reduced energy loss and heat generation while extending the service life of the PSU.

Chinese Premium Capacitors

By using the Chinese premium electrolytic capacitors, the PF-L series can ensure a hold-up time ≥ 10ms under 80% load, which provides reliable protection for abnormal power outages.

hold-up time

≥ 10ms

RELIABLE TOPOLOGY

To meet the Intel ATX 2.31 standard, using Active PFC + Double Forward + magnetic amplification, providing better electrical performance and compatibility.

ERP 2014 LOT 3 Compliant

Designed to be highly power efficient when in power standby mode to meet international ERP 2014 LOT3 standards to lower overall energy consumption.

Strict Safety Standard

Strictly following global safety standards, beyond competitors, including the 40℃ and 5000m safety levels, meets the requirements for high-temperature and high-altitude areas.

Peace of Mind

The PF-L provides comprehensive safeguards, including OVP, UVP, SCP, OPP, SIP and NLO.

Over Voltage Protection

Under Voltage Protection

Short Circuit Protection

Over Power Protection

Surge & Inrush Protection

No Load Operation

Exceptional Warranty

Standing behind the high standards Gamer Storm has set for our products, we provide a 3-year limited warranty to ensure worry-free service and support for our customers.

Main Power Connector 24 (20+4)Pin x1

CPU (4+4)Pin x2

PCI-E (6+2)Pin x2

SATA x 2 + 4Pin Peripheral x 1

AC INPUT	VOLTAGE		CURRENT	FREQUENCY
AC INPUT	200-240Vac		5A	50-60Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
CURRENT(Max)	15A	15A	58A	0.3A	2.5A
OUTPUT(Max)	100W		696W	3.6W	12.5W
TOTAL OUTPUT	750W

Technical Spec

Model	PF750L
Model No	PF750L-HE
Total Output	750W
Type	ATX12V V2.31
Product Dimensions	150×140×86mm (W x L x H)
Efficiency certification	80Plus 230VEU White
Fan Size	120×120×25mm
Fan Bearing	Sleeve Bearing
Topology	Active PFC+Double tube forward
Capacitors	Full Chinese Electroyltic Capacitors
Power Good Signal	100-150ms
Hold Up Time	≥16ms 75% load
Efficiency	≥85% Under Typical Load(50% Loading)
Protection	OVP/UVP/SCP/OPP/SIP/NLO
Operation Temperature	0~40°C
Regulatory	TUV-RH/KC/RCM
Erp Regulation	ErP 2014
Environment Protection	WEEE/Triman
MTBF	100,000 Hours
