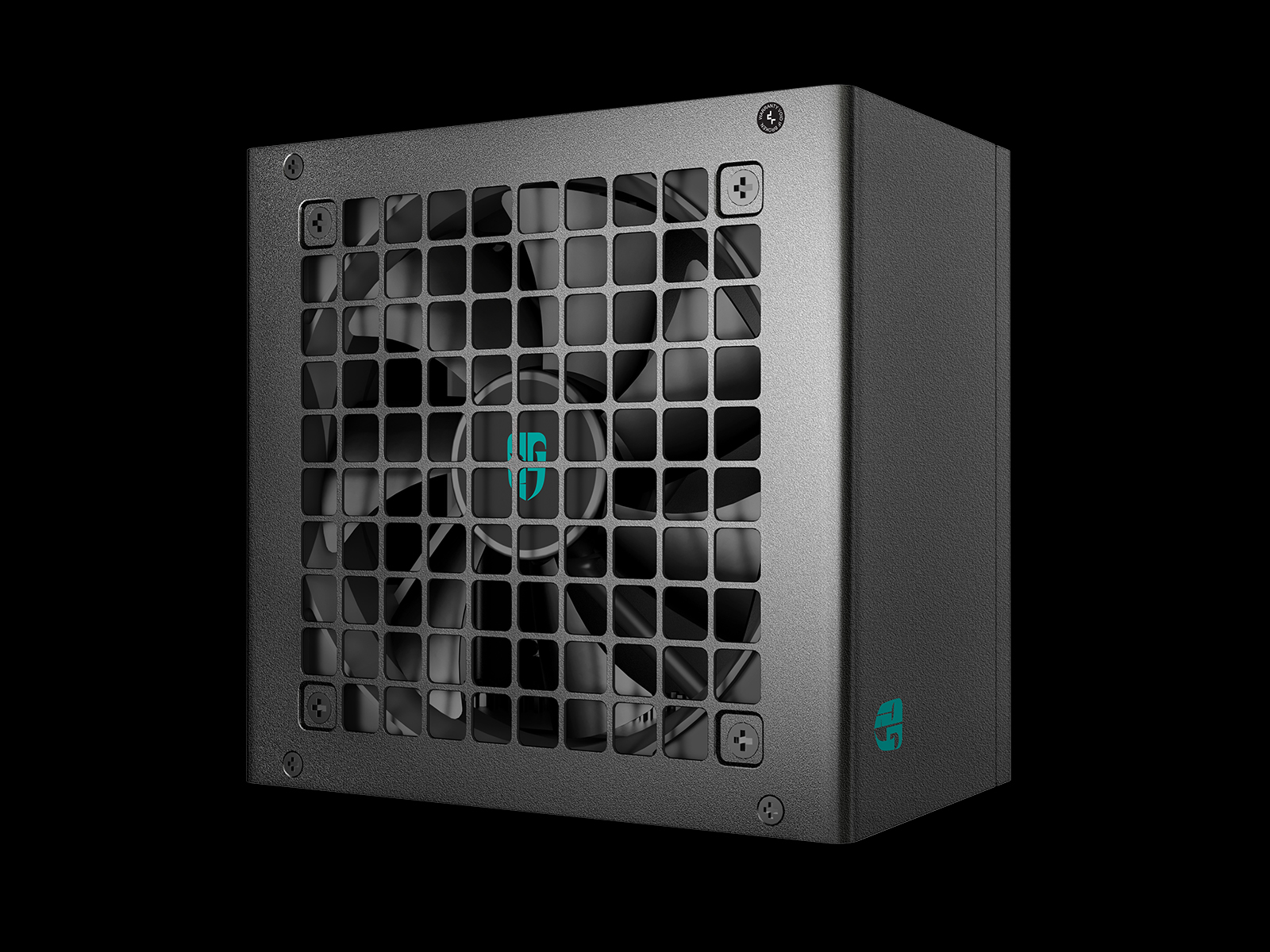

FUTURE PROOF
With the ability to provide three times the TGP for 0.1 ms, random power spikes will never be an issue. The PN850D will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

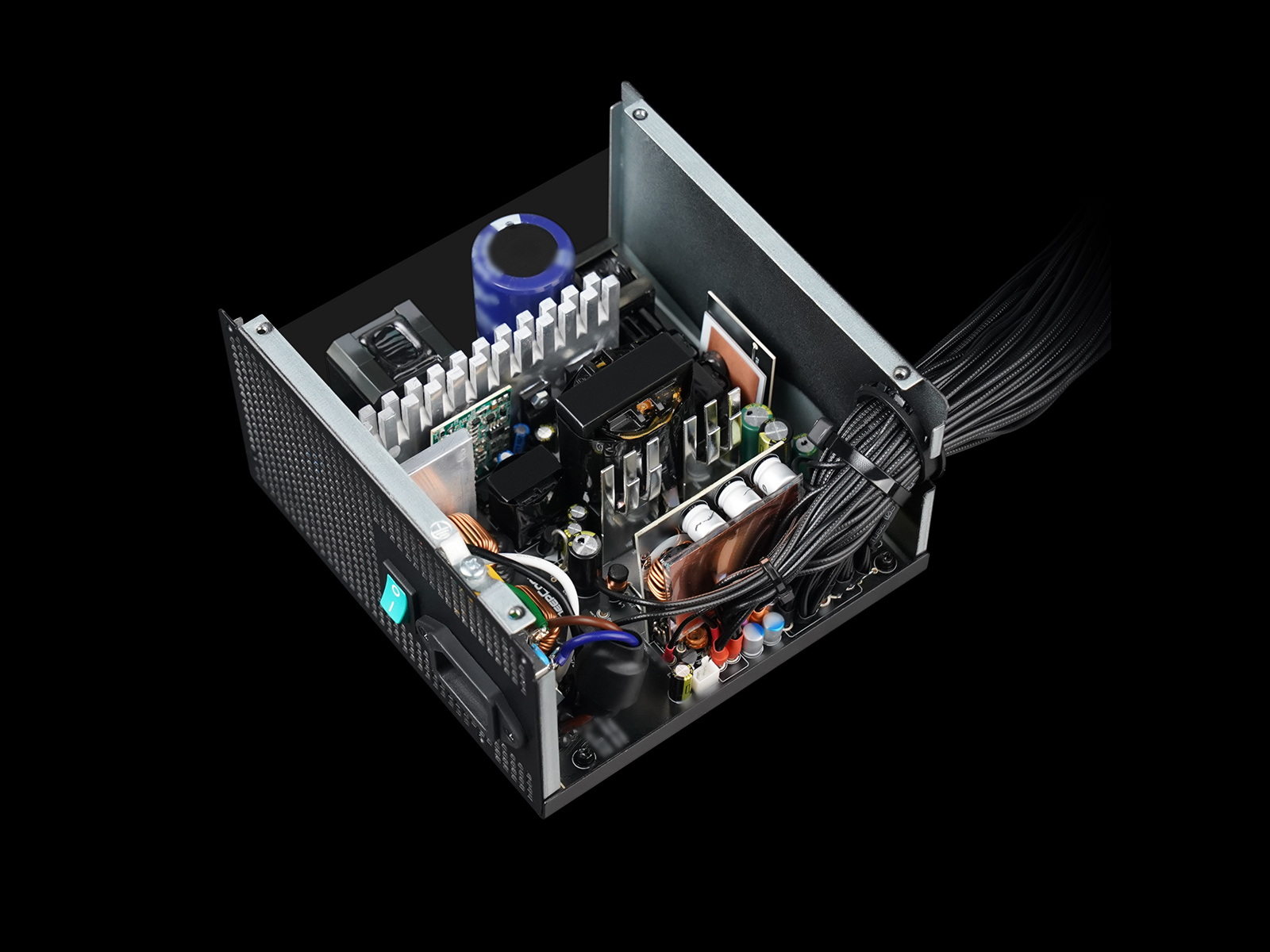

POWER YOU CAN TRUST
Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN850D can keep the hold-up time to ≥ 16 ms under a high load of 80%.

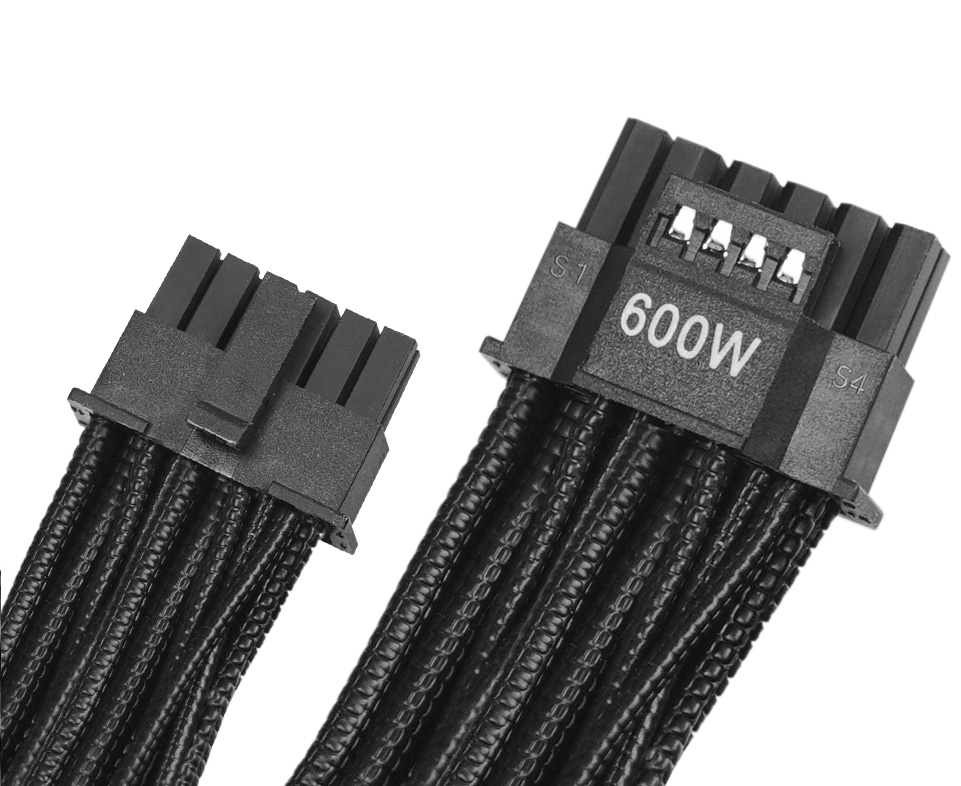

12V-2x6
CABLE
PCI-E 5.1 POWER

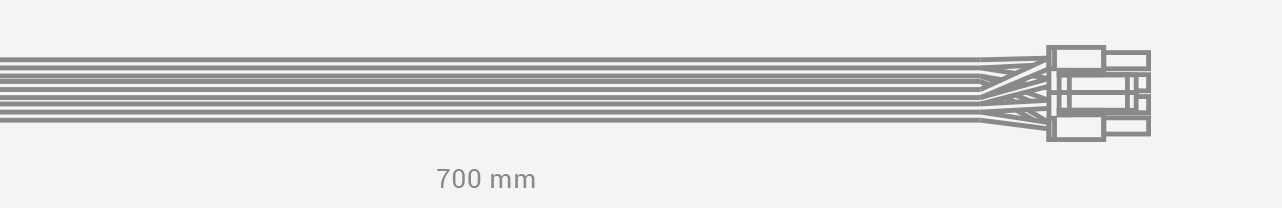

Equipped with a high-grade 105C-resistant 16AWG copper-core sleeved 12V-2x6 cable, the PN850D provides up to 600W for modern GPUs.

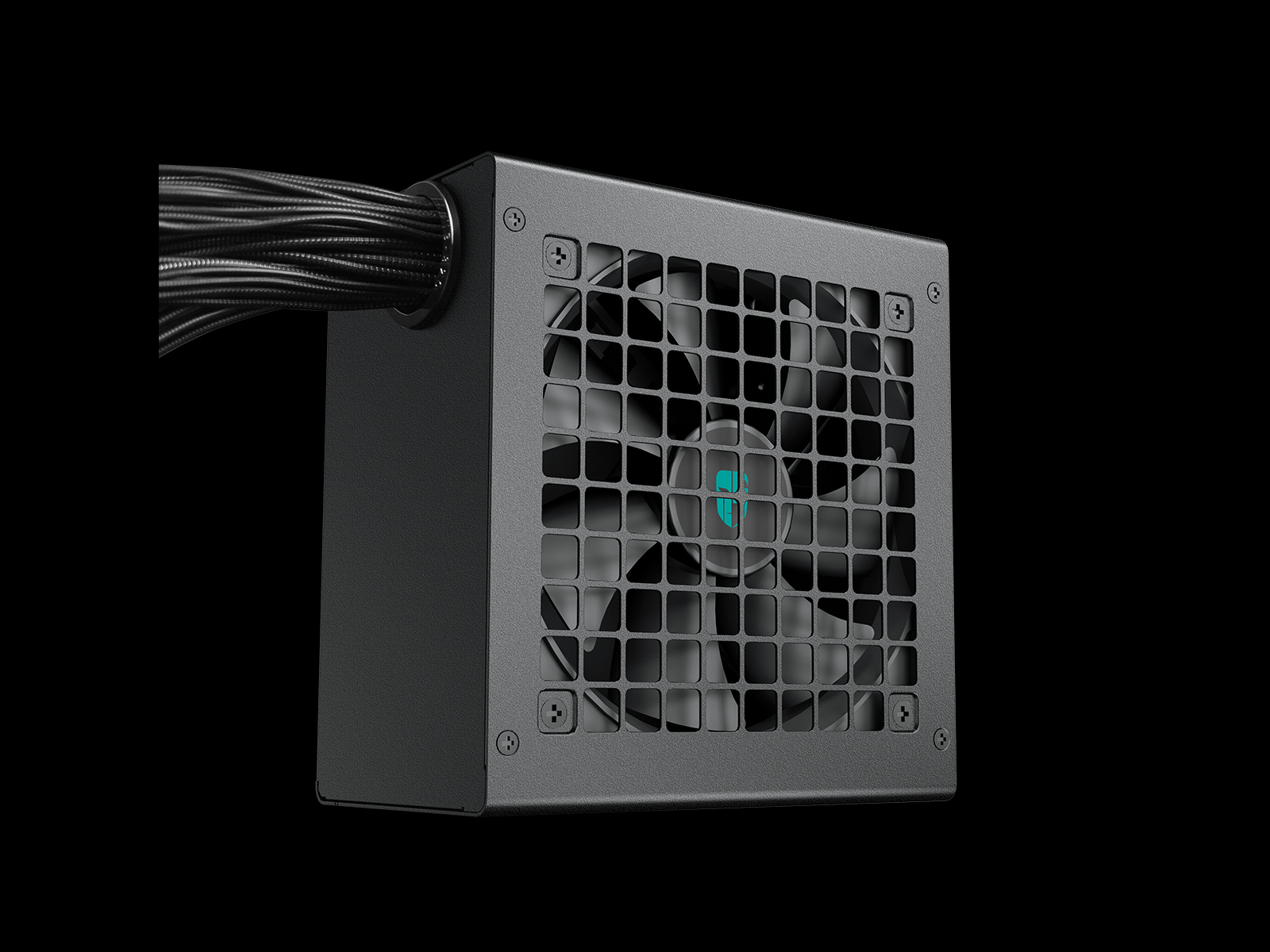

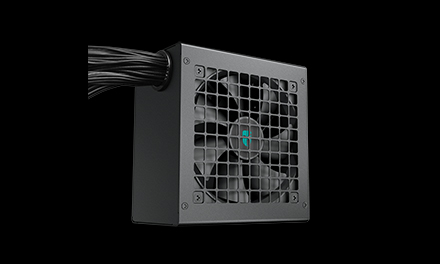

SLEEVED CABLES
The PN850D has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.

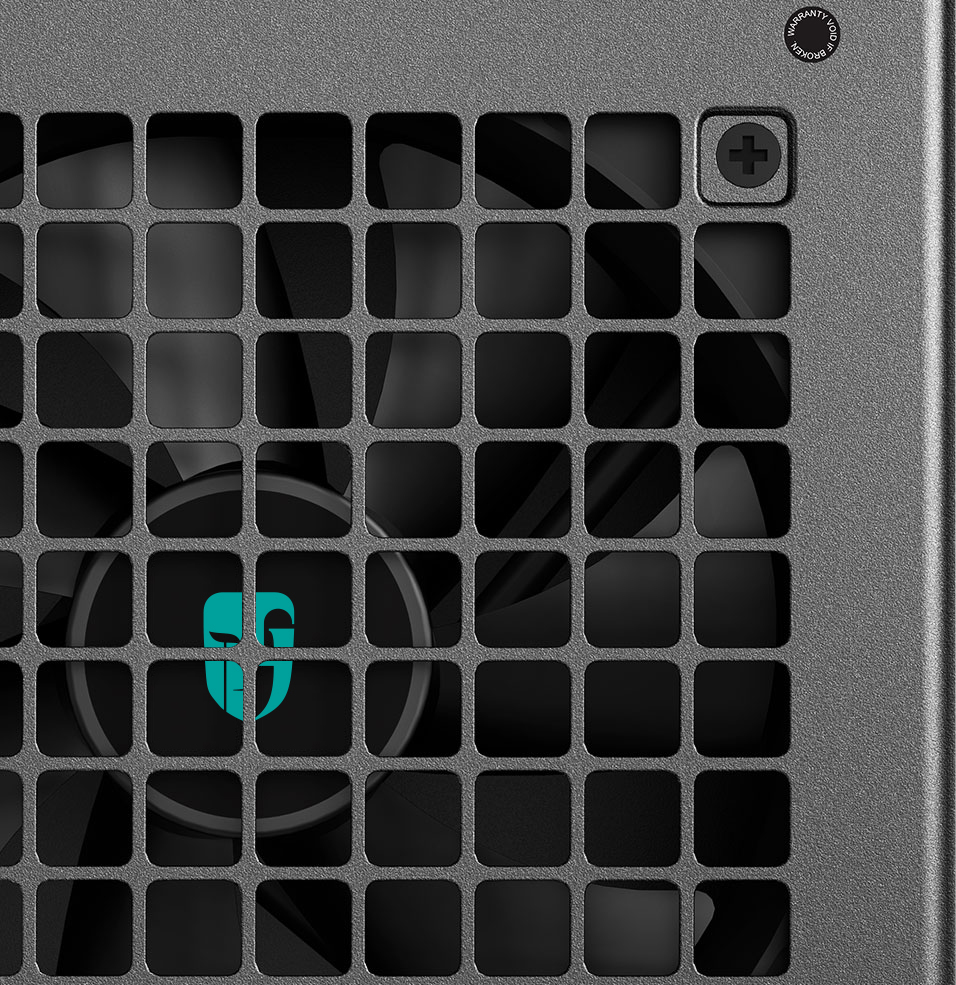

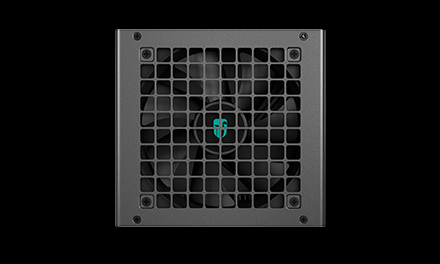

DYNAMIC HYDRO BEARING FAN

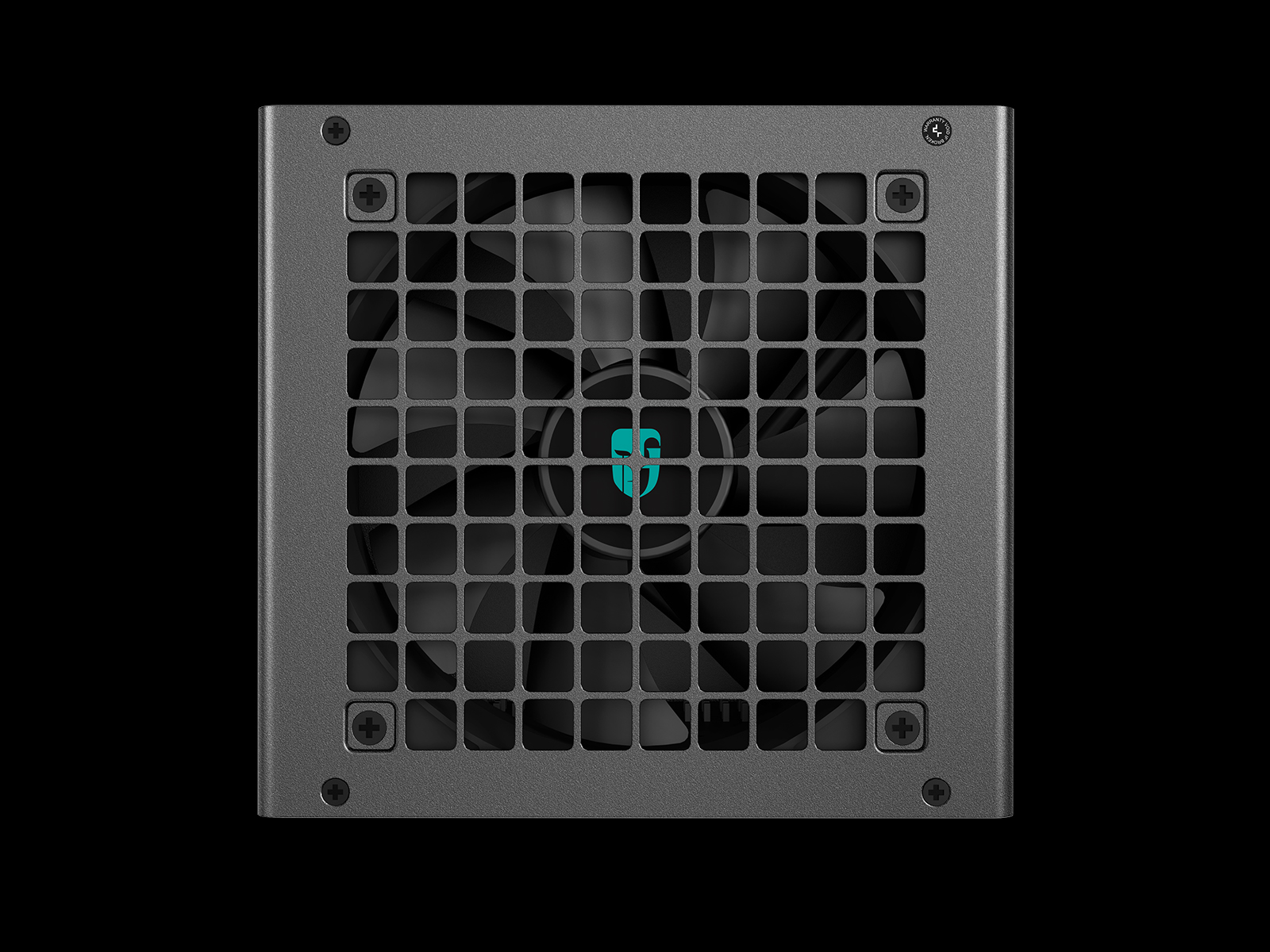

The PN850D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.

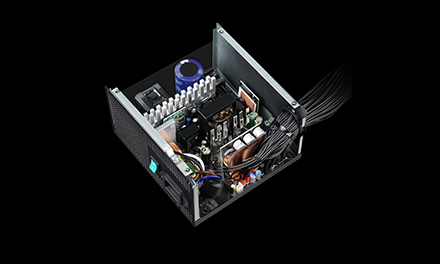

HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN850D will operate at altitudes up to 5000 meters above sea level.
PEACE OF MIND
The PN850D comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temp Protection
Over Current Protection
Under Voltage Protection
No Load Operation
Surge & Inrush Protection
EXCELLENT COVERAGE
The PN850D is engineered and manufactured at such a high level that is offering a lengthy 10 years of trouble-free limited warranty coverage.
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, can refuse to provide the relevant warranty service according to the power supply warranty regulations.
EXCELLENT COVERAGE
The PN850D is engineered and manufactured at such a high level that is offering a lengthy 10 years of trouble-free limited warranty coverage.
* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, can refuse to provide the relevant warranty service according to the power supply warranty regulations.
Main Power Connector (20+4)Pin x 1
X1
CPU(4+4)Pin x 1
X2
PCI-E(6+2)Pin x 1
X3
12V-2x6(16Pin) x 1
X1

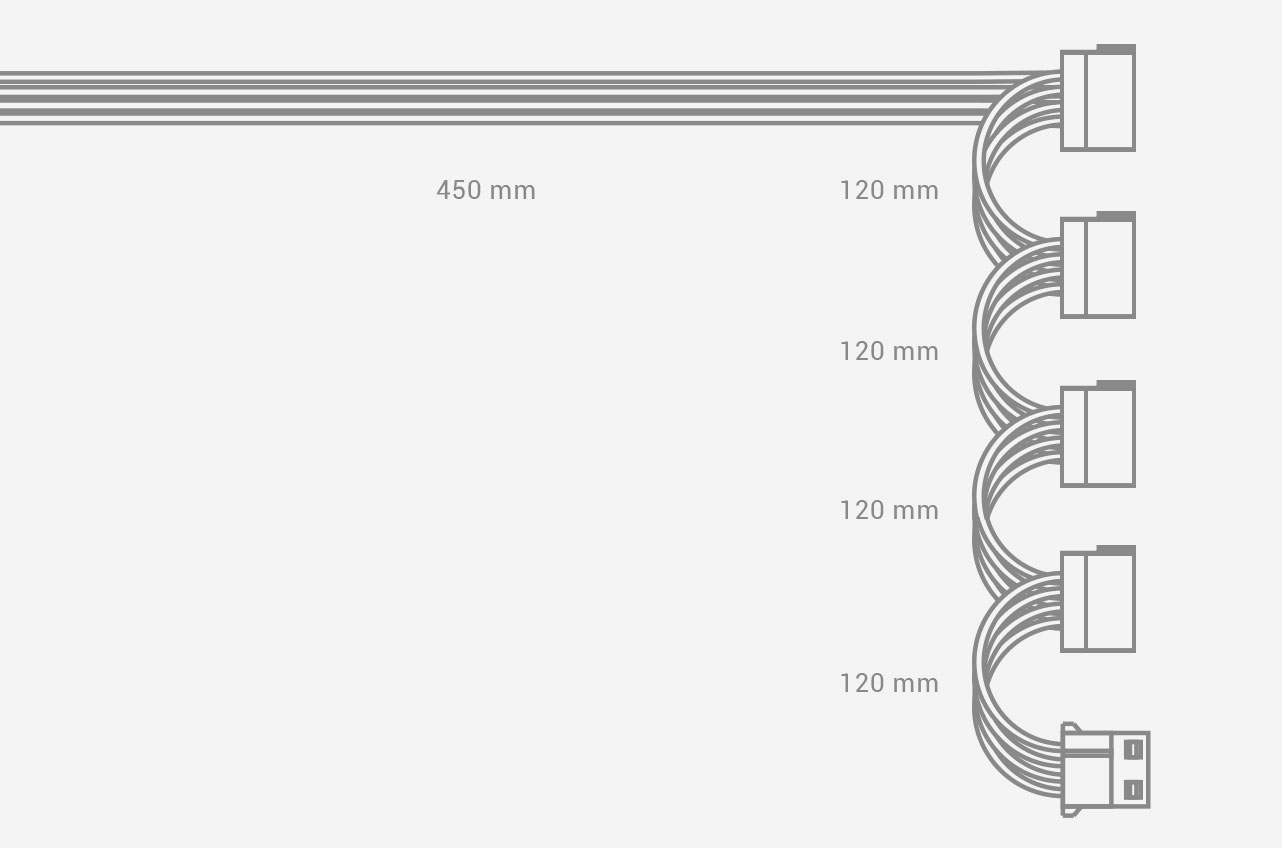

SATA x 4 + 4Pin Peripheral x 1
X2
AC INPUT VOLTAGE CURRENT FREQUENCY
100-240Vac 10-5A 50-60Hz
DC OUTPUT +3.3V +5V +12V -12V +5VSB
CURRENT(Max) 20A 20A 70.5A 0.3A 3A
OUTPUT(Max) 110W 846W 3.6W 15W
TOTAL OUTPUT 850W

технические спецификации


Модель PN850D
Модель No PN850D-FC
Общий выход 850W
Type ATX12V V3.1
Размер устройства 150×140×86mm (Ш x Д x В)
Сертификация эффективности 80Plus Gold
Размер вентилятора 120mm
Подшипник вентилятора HYB(Гидро Подшипник)
Топология Active Коррекция коэффициента мощности + Full Bridge SRC LLC + DC/DC
Конденсаторы Chinese Electrolytic Конденсаторы
Сигнал Power Good 100-150ms
Время задержки ≥16ms(80% Load)
Эффективность ≥90% При Типичной Нагрузке(50% Загрузка 80%)
Защита OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Рабочая температура 0 - 40℃
Соответствие нормативным актам CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC
Соответсвие ErP ErP 2014
Защита окружающей WEEE/中国 RoHS/Triman/P65
Время наработки на отказ 100,000 Часов
  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
Installation
